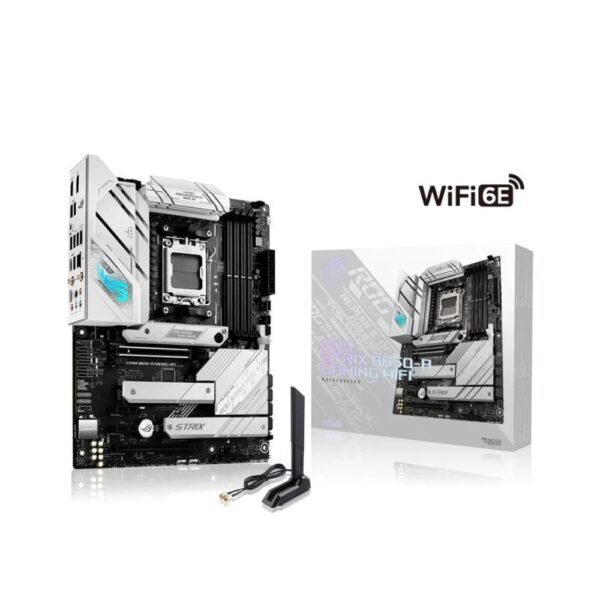

ROG STRIX B650-A GAMING WIFI
The ROG Strix B650-A Gaming WiFi comes equipped with potent performance and thermal prowess in a fresh-looking package. Robust power delivery designed to handle the latest AMD Ryzen™ 7000 Series processors is cooled with thick metal heatsinks that stand out against a black PCB. A PCIe 5.0 M.2 slot, speedy DDR5 memory support, and the latest WiFi 6E networking fleshes out the futuristic feature set.
Click to check our B650 Motherboard Guide
-
12 + 2 + 1 power solution rated for up to 60A per stage
-
On-board PCIe Gen 5 M.2 slot
-
6400 MT/s+, AMD EXPO, DRAM IC profiles, and AEMP
-
Easy installation for GPUs and SSDs, plus simple BIOS updates
-
EATURES
PCIE® SLOT Q-RELEASE
A physical button unlocks the first PCIe slot’s security latch with a simple press, greatly simplifying the process of removing a PCIe card from the motherboard when it’s time to upgrade to a new GPU or add-in card.
M.2 Q-LATCH
The innovative Q-Latch makes it easy to install or remove an SSD from an M.2 slot. The design employs a simple locking mechanism to secure the drive, eliminating the need for a traditional screw.
BIOS FLASHBACK™
BIOS FlashBack™ is a safe and simple way to update BIOS. Just drop the (UEFI) BIOS file onto a FAT32-formatted USB stick, plug it into the USB BIOS FlashBack port, and press the button. Updates can even be performed without having memory or a CPU installed.
Q-LED
Four onboard LEDs indicate power status and identify problems with CPU, memory, graphics card, or boot device for quick diagnosis.
SPECIFICATIONS
- PERFORMANCE
- COOLING
- GAMING IMMERSION
- CONNECTIVITY
BUILT FOR SPEED AND EXPANSION
- AMD AM5 Socket for AMD Ryzen™ 7000 Series Desktop Processors
- Expansion Slots
- 1 x PCIe 4.0 x16 SafeSlot [CPU]
- 1 x PCIe 4.0 x16 Slot [Chipset]
- 2 x PCIe 4.0 x1 Slots [Chipset]
- 12 + 2 + 1 Power Stages
- DDR5 6400+ (OC)
- 4 x DIMM
- Dual channel
- 3 x M.2 Slots
- 1 x M.2 2242-2280 (PCIe 5.0 x4)
- 1 x M.2 2242-2280 (PCIe 4.0 x4)
- 1 x M.2 2242-22110 (PCIe 4.0 x4)
ALL-ROUND PERFORMANCE
Robust power delivery, speedy storage and RAM, and comprehensive cooling controls are core fundamentals of the ROG Strix B650-A, thoroughly preparing you for the future of gaming.
- PCIE 5.0
- OVERCLOCKING
- POWER DESIGN
- MEMORY
- COOLING
PCIE 5.0
Blazing fast storage is at your command with a PCIe 5.0 and two PCIe 4.0 M.2 slots, all featuring robust heatsinks to maximize performance. Push speeds even further, create a mirrored backup, or both; NVMe and SATA RAID configurations (0/1/10) are available through AMD RAIDXpert2. The top PCIe 4.0 x16 SafeSlot supports heavy graphics cards and features Q-Release for easy upgrades.
LEADING CONNECTIVITY
The ROG Strix B650-A delivers next-gen connectivity for ultrafast data transfers and low-latency networking. An advanced audio solution allows you to pick out the smallest cues and home in on your opponents.
- NETWORKING
- AUDIO
PLAY IN STYLE
Slick aesthetics and Aura Sync RGB controls let the ROG Strix B650-A shine in every build.
- ID DESIGN
- AURA SYNC
- CERTIFIED COMPATIBILITY
- ECOSYSTEM
UNDENIABLY ROG STRIX
A bold silver and white aesthetic with a dash of RGB lighting delivers a build that looks as futuristic as its feature set. A meld of form and function is illustrated by a cut-out I/O shield, which allows additional airflow to pass through the VRM heatsink channels below. This design encompases the M.2 and chipset heatsinks as well, and the whole look is tied together with game-centric decals. Pair the Strix B650-A with other products from the diverse ROG ecosystem to create a fully-customized gaming setup that reflects your personal style.
SOFTWARE UTILITIES
ROG-exclusive software delivers intuitive audio tuning and gaming enhancements so you can configure your gaming build the way you want.
- INTELLIGENT CONTROL
- OPTIMIZATION
- ADVANCED AUDIO
- AIDA64
- ARMOURY CRATE
- TWO-WAY AI NOISE CANCELATION
- AI NETWORKING
TWO-WAY AI NOISE CANCELATION
This utility leverages a massive deep-learning database to reduce over 5 million types of background noise from incoming or outgoing audio, helping ensure crystal-clear communication in games or calls.
HEAR THE DIFFERENCE
THIS CHANGES EVERYTHING.
FROM THIS NEW PLATFORM, YOU CAN SEE THE FUTURE
Build your next rig with an AMD Ryzen™ 7000 Series processor and ROG Strix B650-A Gaming WiFi to experience advanced performance. With up to 16 “Zen 4” cores and 32 threads, boost clocks of up to 5.7GHz, and 80MB cache, the AMD Ryzen™ 7000 Series keeps you ahead of the game.1
You’ll also gain access to new features for gamers with AMD Socket AM5, from the speed of DDR5 memory to the increased bandwidth of PCIe® 5.0. AMD Ryzen™ 7000 Series processors and AMD socket AM5 motherboards are unlocked for overclocking to personalize your experience. Gain even more performance when you overclock your DDR5 memory with AMD EXPO™ technology.2
