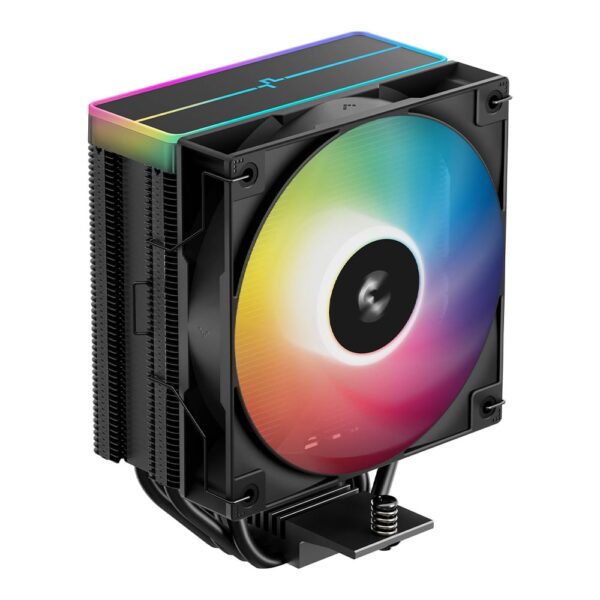

Deepcool AG400 BK ARGB Air Cooler
GAMMAXX SERIES
AG400BKARGB
AG400BKARGB
Efficient 4 Heat Pipes CPU Cooler

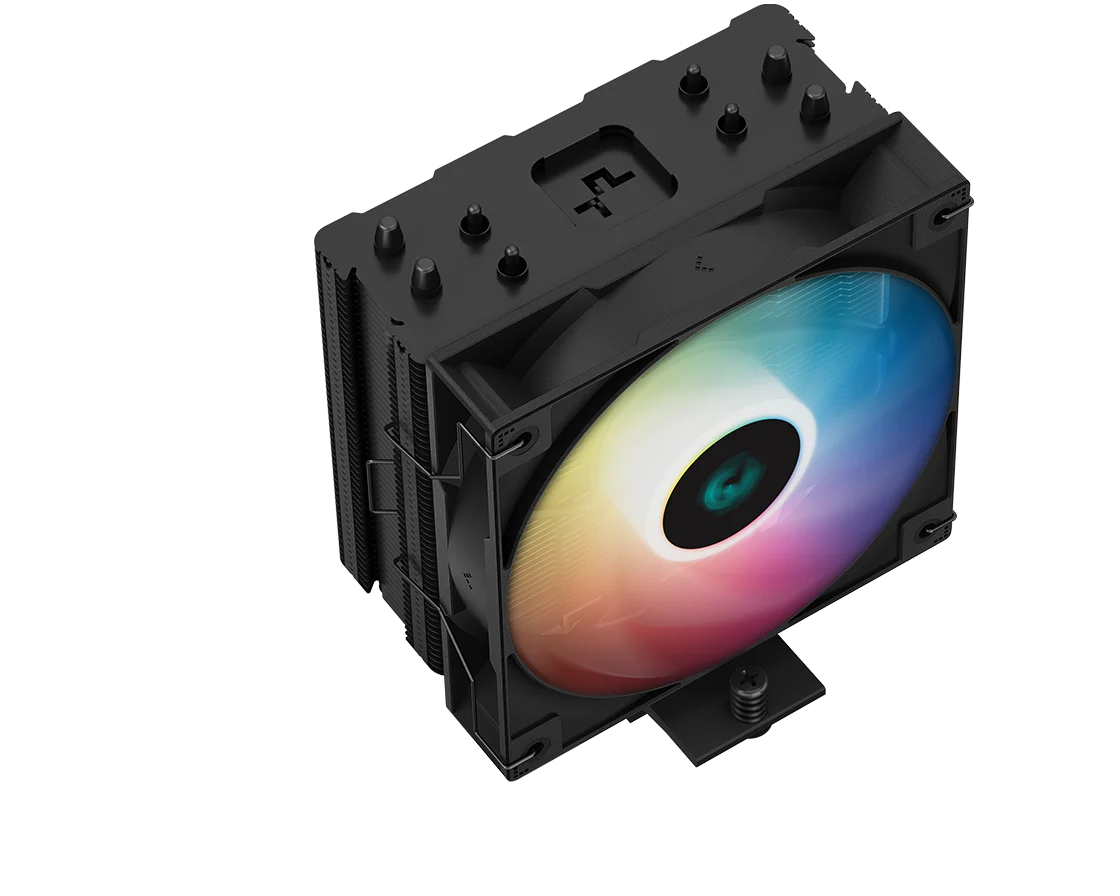

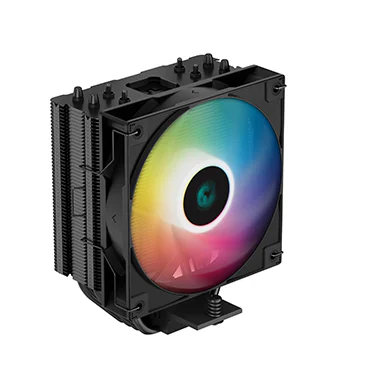

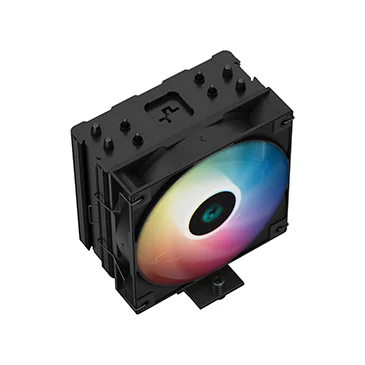

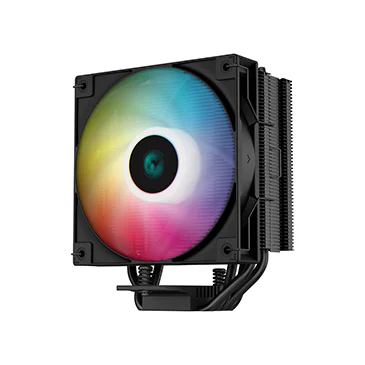

The DeepCool AG400BKARGB is a single tower 120mm CPU cooler that builds upon our legacy for high-quality cooling performance but stripped down for a streamlined and efficient package.
STELLAR THERMAL PERFORMANCE

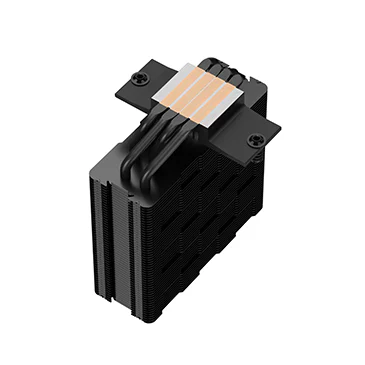

Enjoy better system performance by keeping things cool with up to 220W of heat dissipation power featuring four direct touch heat pipes that rapidly draw heat away from the CPU.

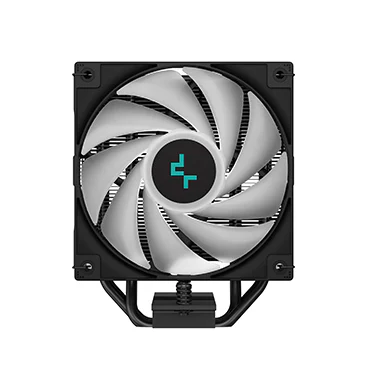

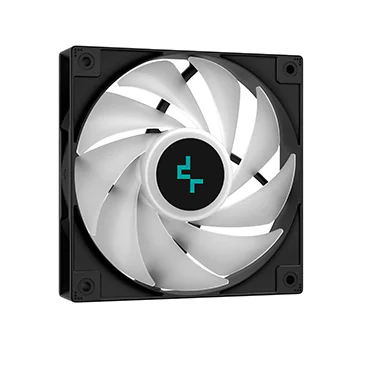

HIGH EFFICIENCY FANS
Find your optimal balance with automatic PWM support for full performance under load to silent efficiency at idle.
500-2000 RPM
≤31.6 dB(A)
75.89 CFM

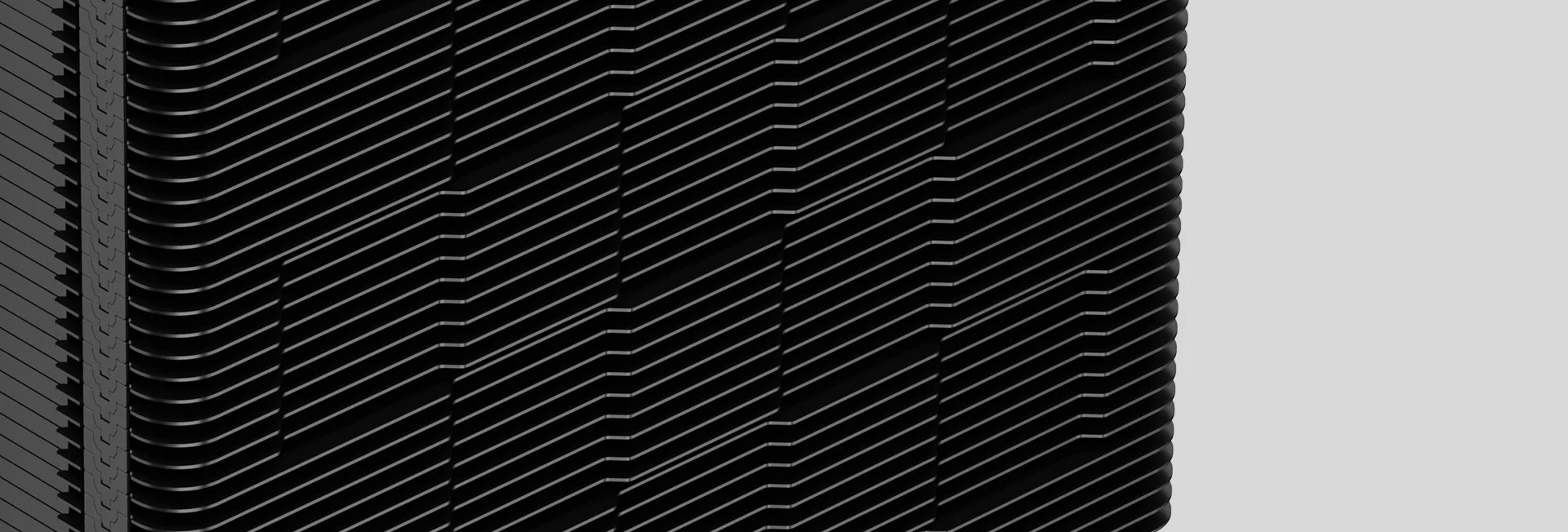

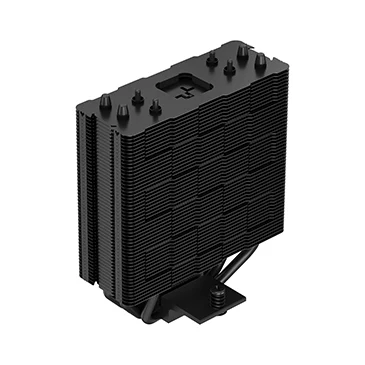

MATRIX FINS ARRAY
High-quality aluminum fins on the heat sink are densely stacked for ideal heat dissipation and which also features a unique “checkerboard” design aesthetic.
SIMPLE AND SECURE

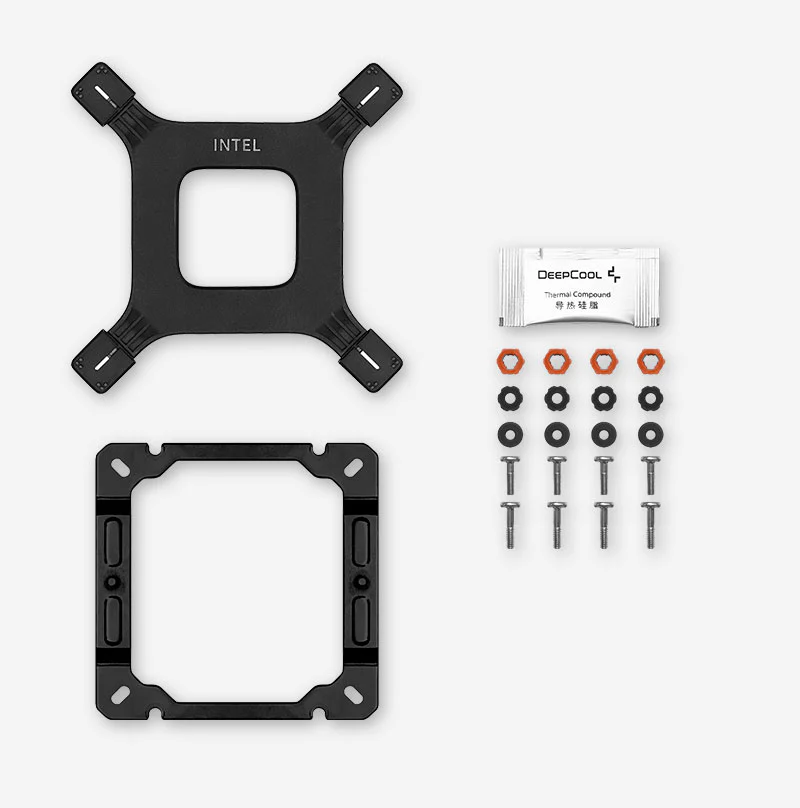

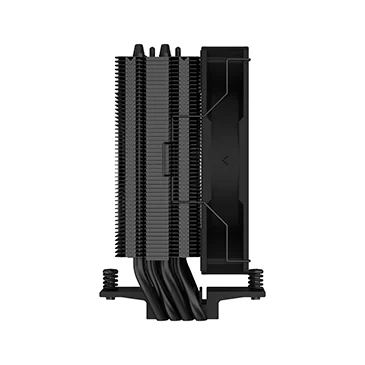

The included mounting brackets support both Intel and AMD platforms with an easy five-step installation process that maintains great contact pressure. The offset design of the heat pipes ensures that the cooler can be installed with the fan already attached.
Application For
Intel
LGA1700/1200/1151/1150/1155
AMD
AM5/AM4
Technical Spec
| Product Dimensions | 125×92×150 mm(L×W×H) |
| Heatsink Dimensions | 120×92×150 mm(L×W×H) |
| Net Weight | 614 g |
| Heatpipe | Ø6 mm×4 pcs |
| Fan Dimensions | 120×120×25 mm(L×W×H) |
| Fan Speed | 500~2000 RPM±10% |
| Fan Airflow | 75.89 CFM |
| Fan Air Pressure | 2.53 mmAq |
| Fan Noise | ≤31.6 dB(A) |
| Fan Connector | 4-pin PWM |
| Bearing Type | Hydro Bearing |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.28 A |
| Fan Power Consumption | 3.36 W |
| LED Type | Addressable RGB LED |
| LED Connector | 3-pin(+5V-D-G) |
| LED Rated Voltage | 5 VDC |
| LED Power Consumption | 1.05 W |
| EAN | 6933412727774 |
| P/N | R-AG400-BKANMC-G-2 |
Product Dimension
