- Optimized for performance, the AG620 BK ARGB dual-tower CPU cooler offers a superb price-performance ratio with up to 260W of heat dissipation power in a streamlined package.
- A precision machined copper base rapidly transfers heat from the CPU into a dual-tower heat sink layout for wide-range thermal power control that provides consistent cooling capacity.
- Six highly efficient heat pipes on the copper base directly contact the CPU heat spreader for rapid heat transfer and excellent performance.
- Two high-efficiency 120mm fan with automatic PWM control outputs up to 1850RPM for full cooling performance under load or ramps down to 300RPM for silent operation.
- The simple mounting mechanism offers quick and easy installation for Intel LGA 1700/1200/115x and AMD Ryzen AM5/AM4
Deepcool AG620 BK ARGB Specs
| Cooler Type | CPU Air Cooler |
| Bearing Type | Hydro |
| Connectors | 3-Pin, 4-Pin |
| Control Method | PWM (Pulse Width Modulation) |
| Fan Size | 120 mm |
| Fan Thickness | 1.0″ / 25.00 mm |
| Fan Speed | 300 to 1850 rpm |
| Static Pressure | 2.04 mm H2O |
| Noise Level | 29.4 dBA |
| LED | RGB |
| Maximum Airflow | 67.88 CFM |
| Power Consumption | 1.68 W |
Cooling
| Supported AMD Sockets | AM4, AM5 |
| Supported Intel Sockets | LGA 1150, LGA 1151, LGA 1155, LGA 1200, LGA 1700, LGA 2011-v3, LGA 2066 |
| Number of Fans | 2 |
| Heatsink Material | Aluminum |
| CPU Cooler Overall Height | 6.2″ / 157.00 mm |
| CPU Cooler Length x Width | 5.1 x 5.4″ / 129.0 x 136.0 mm |
| Weight | 2.9 lb / 1300 g |

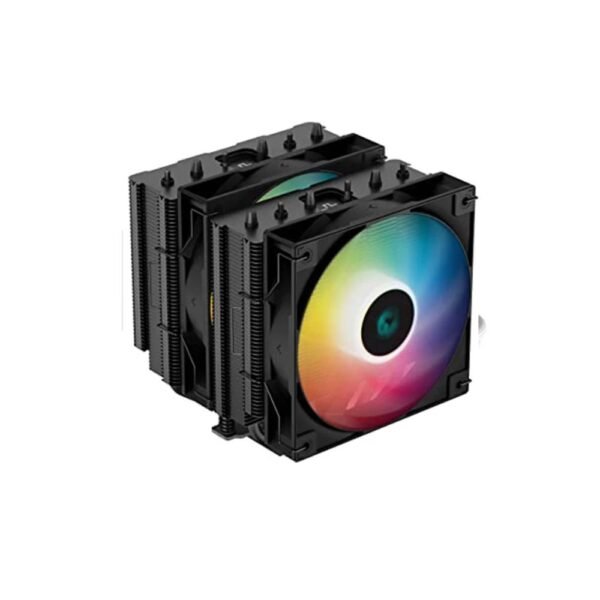

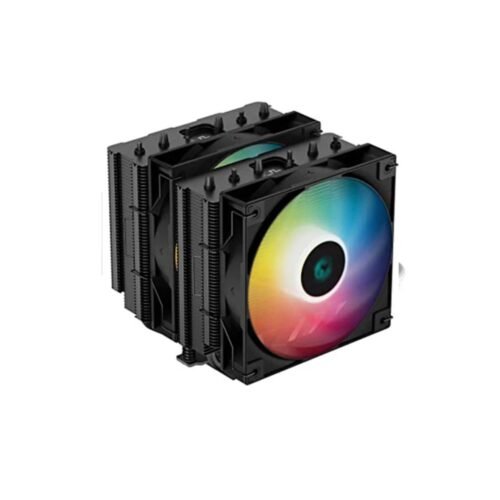

DeepCool AG620 ARGB is a dual-tower 120mm CPU cooler that boasts impressive 260W cooling power performance that’s been stripped down and optimized for terrific efficiency throughout.
SUBSTANTIAL COOLING POWER
Keep things cool with up to 260W of heat dissipation power to ensure your system is performing at its peak without a sweat.
HIGH EFFICIENCY FANS
Find your optimal balance with automatic PWM support for full performance under load to silent efficiency at idle.
300-1850 RPM
≤29.4 dB(A)
67.88 CFM
MATRIX FINS ARRAY
High-quality aluminum fins on the heat sink are densely stacked for ideal heat dissipation and which also features a unique “checkerboard” design aesthetic.
SIMPLE AND SECURE
The included all-metal mounting brackets support both Intel and AMD platforms with an easy five-step installation process that maintains great contact pressure.
Application For
Intel
LGA2066/2011-v3/2011/1700/1200/1151/1150/1155
AMD
AM5/AM4
Technical Spec
| Product Dimensions | 129×136×157 mm |
| Heatsink Dimensions | 127×110×157 mm |
| Net Weight | 1300 g |
| Heatpipe | Ø6 mm×6 pcs |
| Fan Dimensions | 120×120×25 mm |
| Fan Speed | 300~1850 RPM±10% |
| Fan Airflow | 67.88 CFM |
| Fan Air Pressure | 2.04 mmAq |
| Fan Noise | ≤29.4 dB(A) |
| Fan Connector | 4-pin PWM |
| Bearing Type | Hydro Bearing |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.14 A |
| Fan Power Consumption | 1.68 W |
| LED Type | Addressable RGB LED |
| LED Connector | 3-pin(+5V-D-G) |
| LED Rated Voltage | 5 VDC |
| LED Power Consumption | 1.05 W |
| EAN | 6933412727811 |
| P/N | R-AG620-BKANMN-G-1 |
