AK400 DIGITAL
WELCOME TO THE DIGITAL ERA
REAL-TIME STATUS SCREEN
The crystal-clear digital screen displays the temperature and usage of your system’s CPU in real time, and there is also a high temperature warning. The display is controlled via a simple application that only requires an open USB 2.0 header.
℃
℉
*Due to variances in hardware configurations, polling periods, and system settings, the displayed information may experience minor delays.
*CPU temperature based on Intel: CPU Package / AMD: CPU Tdie
*CPU temperature based on Intel: CPU Package / AMD: CPU Tdie

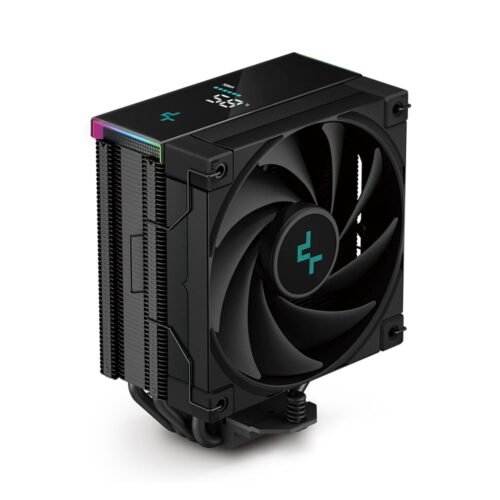

PROVEN AK ZERO DARK DESIGN
An all-black variant of our highly compatible AK400 CPU cooler featuring a direct touch, four heat pipe tower layout with a unique black matrix fin design and a high-performance FDB fan that delivers excellent heat dissipation and extremely low noise levels.
PREMIUM COMPATIBILITY
The exceptional cooling performance of the AK400 DIGITAL on modern CPUs makes it the perfect choice for mainstream systems needing impressive price-performance ratio in a compact size.
FLUID DYNAMIC BEARING FAN
Achieve high-performance cooling with minimal noise levels thanks to the high-performance FDB FK120 fan that maximizes airflow and static pressure when needed and intelligently ramps down for silent efficiency.
SIMPLE AND SECURE INSTALLATION
The improved installation method is made easy with a sturdy all-metal mounting bracket and a quick five-step process to safely fasten your cooler on multiple platforms supporting the latest from Intel and AMD.
Application For
Intel
LGA1700/1200/1151/1150/1155
AMD
AM5/AM4
Technical Spec
| Product Dimensions | 126×97×156 mm(L×W×H) |
| Heatsink Dimensions | 120×60×152 mm(L×W×H) |
| Net Weight | 695 g |
| Heatpipe | Ø6 mm×4 pcs |
| Fan Dimensions | 120×120×25 mm(L×W×H) |
| Fan Speed | 500~1850 RPM±10% |
| Fan Airflow | 68.99 CFM |
| Fan Air Pressure | 2.19 mmAq |
| Fan Noise | ≤28 dB(A) |
| Fan Connector | 4-pin PWM |
| Bearing Type | Fluid Dynamic Bearing |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.12 A |
| Fan Power Consumption | 1.44 W |
| LED Type | Addressable RGB LED |
| LED Connector | 3-pin(+5V-D-G) and 9-pin USB 2.0 |
| LED Rated Voltage | 5 VDC |
| LED Power Consumption | 3 W |
| EAN | 6933412728207 |
| P/N | R-AK400-BKADMN-G |
