| Product Dimensions | 416×210×477mm(L×W×H) |
| Net Weight | 5.25Kg |
| Materials | ABS+SPCC+Tempered Glass |
| Motherboard Support | Mini-ITX / Mico-ATX / ATX |
| Front I/O Ports | USB3.0×1、USB2.0×1、Audio×1 |
| 3.5″ Drive Bays | 2 |
| 2.5″ Drive Bays | 2 |
| Expansion Slots | 7 Slots |
| Pre-Installed Fans | Front: 3×120mm Rear: 1×120mm |
| Fan Support | Front: 3×120 / 2×140mm Top: 2×120 / 2×140mm Rear: 1×120mm |
| Radiator Support | Front: 120/140/240/280/360mm Top: 120/240mm Rear: 120mm |
| CPU Cooler Height Limit | 163mm |
| GPU Length Limit | 370mm |
| Power Supply Type | ATX PS2（maximum length: 170mm） |
| EAN Code | 6933412714880 |
| PN Code | R-CC560-BKGAA4-G-1 |

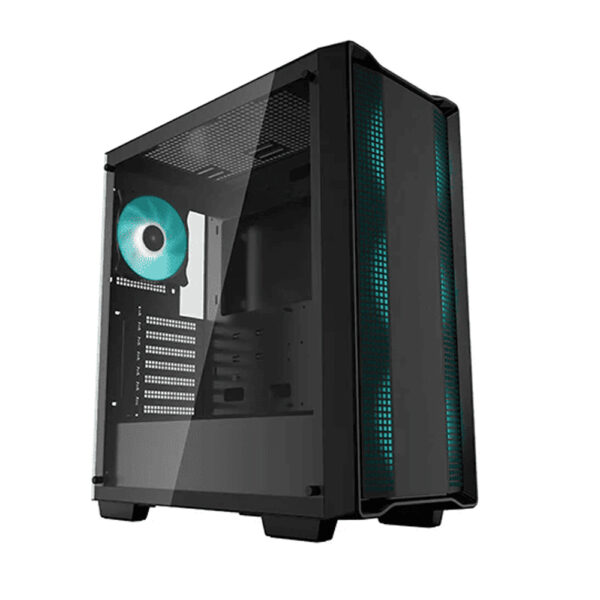

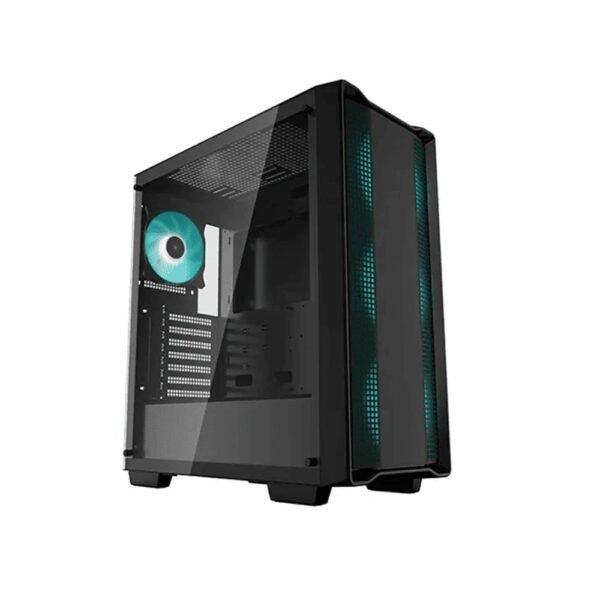

CC560
Mid-Tower Case
The DeepCool CC560 Mid-Tower Case offers outstanding value with spacious component compatibility, a full-sized tempered glass window, and a total of four pre-installed LED fans that gets any build started right.
Abundant
Airflow Performance
Airflow Performance
Well ventilated throughout the entire chassis, the CC560 sports an airflow front panel and a large mesh top panel to ensure fresh air is circulating.
Primed and Ready
A total of 4 pre-installed LED fans delivers big airflow performance ensuring any system build is receiving top-notch cooling capacity.
Wide Cooling Support
Enough space to support high-performance AIO liquid coolers with room for 360mm radiators in front or 240mm on top. Cooling fan support for up to 6x 120mm or 4x 140mm.
6120mm
5140mm
CASE FANS
1360mm
2280mm
2240mm
3140mm
3120mm
RADIATOR
Compatibility
Max CPU Cooler Height: 163mm
Max GPU Length: 370mm
Max PSU Length: 170mm
Full-Sized Tempered Glass Window
Top Panel Magnetic Dust Filter
