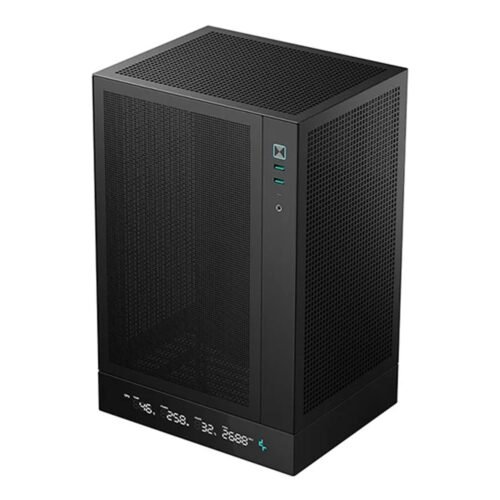

CH170 DIGITAL
The Tiny Tower of Power
HIGH AIRFLOW PANELS
Mesh panels surround the CH170 DIGITAL from every side and create a high-airflow, small-form-factor case like no other.
MULTIPLE DATA POINT DISPLAY
The CH170 DIGITAL has a digital base that displays four vital points of data at the same time. The display can focus on CPU, GPU, and PSU information at any given point in time. It can scroll through all aspects at a timed interval.
CPU
Temperature
Power Consumption
Usage
Frequency (or Fan Speed)
Power Consumption
Usage
Frequency (or Fan Speed)
GPU
Temperature
Power Consumption
Usage
Frequency
Power Consumption
Usage
Frequency
PSU
Temperature
Power Consumption
Usage
Fan Speed
Power Consumption
Usage
Fan Speed
*Due to variances in hardware configurations, polling periods, and system settings, the displayed information may experience minor delays.
*CPU temperature based on Intel: CPU Package / AMD: CPU Tdie
*CPU temperature based on Intel: CPU Package / AMD: CPU Tdie
FLEXIBLE POWER OPTIONS
Whether you choose to go with ATX, SFX, or SFX-L power supplies, the CH170 DIGITAL can support any of them up to 140mm.
QUALITY OF LIFE IMPROVEMENTS
Equipped with options such as removable fan brackets, where the top fan bracket can be utilized to support either an SSD, HDD drive, or a 120mm fan; three removable dust filters for ease of cleaning; two USB 3.0, a Type-C, and a hybrid audio port, the CH170 DIGITAL makes everything a little easier.
Technical Spec
| Product Dimensions | 380x200x250mm(L×W×H) |
| Net Weight | 3.4Kg |
| Materials | ABS+SPCC |
| Motherboard Support | Mini-ITX |
| Front I/O Ports | USB3.0×2、Audio×1、Gen2 TypeC×1 |
| 3.5″ Drive Bays | 1（2.5 SSD / 3.5 HDD / Front 120 FAN :Choose one of the three） |
| 2.5″ Drive Bays | 1（2.5 SSD / 3.5 HDD / Front 120 FAN :Choose one of the three） |
| Expansion Slots | 3 Slots |
| Pre-Installed Fans | None |
| Fan Support | Top:1×120 mm Front: NA Rear: 2×120 mm Bottom:1×120 mm Side : 2×120 mm |
| Radiator Support | Side : 240mm |
| CPU Cooler Height Limit | 172mm |
| GPU Size Limit | Length: SFX/SFX-L: 305mm / ATX: 230mm Height: 138mm Width: 65mm (3 Slots) |
| Power Supply Type | ATX PS2（maximum length: 140mm）/ SFX / SFX-L |
| EAN | 6933412774228 |
| P/N | R-CH170-BKNPI0D-G-1 |
