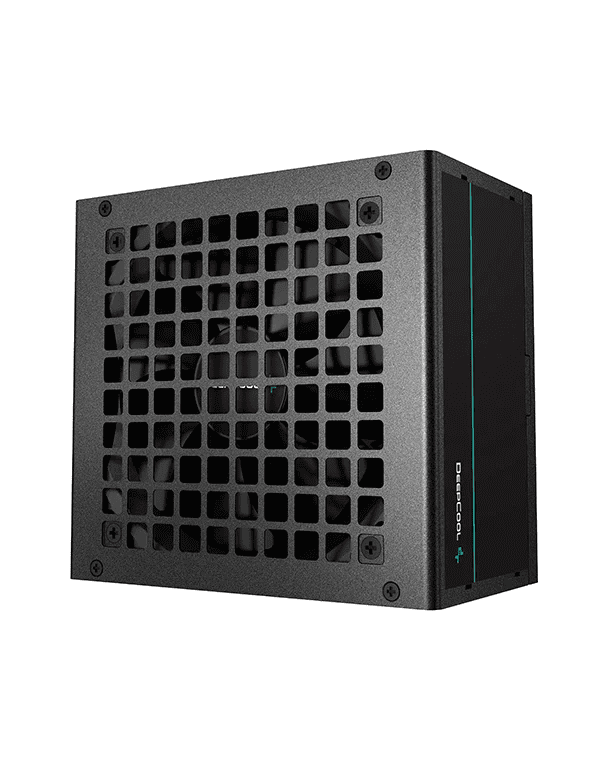

Deepcool PF650
80 PLUS Standard Power Supply
PF650
The DeepCool PF Series Power Supply Unit offers safe and stable power performance with reliable 80 PLUS Standard efficiency and affordable pricing.
TO HIGHER STANDARDS
Certified for 80 PLUS 230V EU Standard efficiency that ensures 85% efficiency under typical loading of 50%. Better efficiency translates into lower energy waste and lower temperatures for more cost savings.
SILENT HYDRAULIC BEARING FAN
Optimally balanced for low-noise performance, the 120mm fluid bearing fan improves overall life expectancy and reduces friction and vibration.
PF SERIES 80 PLUS STANDARD POWER SUPPLY
FLAT BLACK CABLES
Stealthy and flexible, the fixed flat black cables are easy to maneuver for cable management while also taking up less space in your system.
RELIABLE PROTECTION
Shield against potential risk and damage with overpower, over voltage, and short circuit power protection.
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Under Voltage Protection
Main Power Connector 24 (20+4)Pin x1
X1
EPS 12V Connector 8 (4+4)Pin x2
X1
PCI-E (6+2)Pin x2
X2
SATA x3 + 4Pin Peripheral x1
X2
Technical Spec
| Type | ATX12V V2.4 |
| Product Dimensions | 150×140×86mm (W x L x H) |
| 80PLUS Certifications | 230V EU White |
| Fan Size | 120mm |
| Fan Bearing | Hypro Bearing |
| Topology | Active PFC+Double tube forward |
| Capacitors | Taiwan bulk capacitor |
| Power Good Signal | 100-500ms |
| Hold Up Time | ≥10ms(75% Load) |
| Efficiency | ≥85% Under Typical Load(50% Loading) |
| Protection | OPP/OVP/SCP/UVP |
| Operation Temperature | 0-30°C |
| Regulatory | CB/CCC/CE/UKCA/EAC/RCM/BIS |
| Erp Regulation | ErP 2010 |
| MTBF | 100,000 Hours |
Are you looking for a powerful and durable power supply unit (PSU) for your PC? If so, you might want to check out the Deepcool PF650D 230V Power Supply Unit. This PSU is designed to deliver stable and efficient performance for your gaming or workstation needs. Here are some of the features and benefits of this PSU:
- It has a 650W output capacity, which can support high-end components such as graphics cards, CPUs, and SSDs.
- It has an 80 PLUS Gold certification, which means it has a high energy efficiency of up to 92% and can save you money on your electricity bills.
- It has a fully modular design, which allows you to use only the cables you need and reduce clutter in your PC case.
- It has a 120mm fan with intelligent speed control, which can adjust the fan speed according to the load and temperature and ensure quiet and cool operation.
- It has multiple protection features, such as over voltage protection, over current protection, over power protection, short circuit protection, and under voltage protection, which can prevent damage to your PC components in case of power fluctuations or failures.
The Deepcool PF650D 230V Power Supply Unit is a great choice for anyone who wants a reliable and efficient PSU for their PC. You can find this PSU at greypc.net, where you can also browse other PC components and accessories at affordable prices. Order yours today and enjoy fast shipping!
