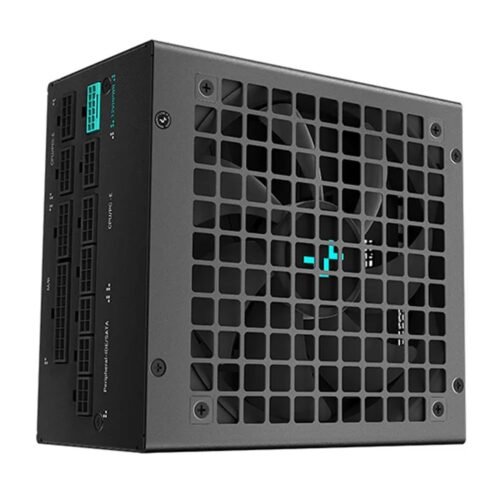

PX1000G
ATX 3.0 Power Supply
PAST, PRESENT,
AND FUTURE
AND FUTURE
With the ability to provide three times the total GPU and twice the total system power for 0.1 ms, power spikes will never be an issue. The PX1000G will provide stable and consistent power for legacy and next-generation PCs for the foreseeable future.
Total Power Excursion
THE GLORY OF GOLD
ATX3.0 COMPLIANCE PRODUCT
ATX3.0 COMPLIANCE PRODUCT
80 PLUS GOLD and CYBENETICS PLATINUM certified to ensure high efficiency under typical load conditions.
Please visit the Intel official website to learn more about the ATX 3.0 standard and compliance product.
Please visit the Intel official website to learn more about the ATX 3.0 standard and compliance product.
PREMIUM QUALITY
Solid and reliable power is provided through the use of full Japanese 105C capacitors. Due to the high quality of the PSU build, the PX1000G will operate at altitudes up to 5000 meters above sea level.
RELIABLE STABILITY
Through the use of a dual main capacitor topology,
the PX1000G can keep the hold-up time to ≥ 16ms under full load.
the PX1000G can keep the hold-up time to ≥ 16ms under full load.
PCI-E 5.0 POWER PERFECTED
Equipped with the new PCI-e Gen 5.0 12VHPWR cable, the PX-G provides up to 600W for power hungry GPUS.
STATIC TO DYNAMIC
The PX1000G comes equipped with the option to switch into semi-fanless operation. In hybrid mode, the 135mm FDB fan will dynamically adjust out of its zero RPM state once the system load hits a certain threshold.
FANLESS MODE DISABLED
FANLESS MODE ENABLED
* The auto start-stop fan operates once the PSU reaches a specific temperature and stops when the PSU temperature is below it.
* The fan speed will also depend on the PSU temperature once it operates.
* The fan speed will also depend on the PSU temperature once it operates.
PEACE OF MIND
The PX1000G includes a slew of well-rounded safeguards, including OPP, OVP, SCP, OTP, OCP, and UVP.
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Over Temp Protection
Over Current Protection
Under Voltage Protection
MAXIMUM COVERAGE
The PX-G is engineered and manufactured at such a high level that DeepCool is offering a lengthy 10 years of trouble-free limited warranty coverage.
* This product is prohibited from being used for mining and other abnormal uses. If the product fails due to it, DeepCool can refuse to provide the relevant warranty service according to the power supply warranty regulations.
Main Power Connector 24 (20+4)Pin x1
X1
CPU (4+4)Pin x 1
X2
PCI-E (6+2)Pin x1
X3
SATA x4
X2
12VHPWR (16Pin) x1
X1
4Pin Peripheral x4
X1
Technical Spec
| Type | ATX12V V3.0 |
| Product Dimensions | 150×160×86mm (W x L x H) |
| Efficiency certification | 80Plus GOLD/Cybenetics_Platinum |
| Fan Size | 135mm |
| Fan Bearing | FDB (Fluid Dynamic Bearing) |
| Topology | Active PFC + Half Bridge SRC LLC + DC to DC |
| Capacitors | Full Japan Electrolytic Capacitors |
| Power Good Signal | 100-150ms |
| Hold Up Time | ≥16ms |
| Efficiency | ≥90% Under Typical Load(50% Loading) |
| Protection | OPP/OVP/SCP/OTP/OCP/UVP |
| Operation Temperature | 0 – 40℃ |
| Regulatory | CE/FCC/CCC/TUV-RH/RCM/EAC/CAN ICES-003(B)/NMB-003(B)/UKCA/BIS/KC; |
| Erp Regulation | ErP 2014 |
| Environment Protection | WEEE/中国 RoHS/Triman |
| MTBF | 100,000 Hours |
| EAN P/N | 6933412716778 R-PXA00G-FC0B-CN 6933412716785 R-PXA00G-FC0B-AU 6933412716792 R-PXA00G-FC0B-EU 6933412716808 R-PXA00G-FC0B-JP 6933412716815 R-PXA00G-FC0B-UK 6933412716822 R-PXA00G-FC0B-US 6933412716839 R-PXA00G-FC0B-WO 6933412716846 R-PXA00G-FC0B-BP |
