PX1300P
The Power of Platinum!
PAST, PRESENT,
AND FUTURE
AND FUTURE
With the ability to provide three times the total GPU and twice the total system power for 0.1 ms, random power spikes will never be an issue. The PX1300P will provide stable and consistent power for legacy and next-generation PCs for the foreseeable future.
Total Power Excursion
PRISTINE PLATINUM
80 Plus and Cybenetics Platinum certified to meet a high level of power efficiency under typical loads.
PREMIUM QUALITY AT ITS FINEST
Solid and reliable power is provided through the use of all Japanese Electrolytic 105C capacitors and a dual main capacitor topology. Due to the high quality of the PSU build, the PX1300P will operate at altitudes up to 5000 meters above sea level.
RELIABLY STABLE
Through the use of a semi-digital, interleaved PFC, Full-Bridge & LLC, and a DC to DC dual main capacitor topology, the PX1300P can keep the hold-up time to ≥ 16 ms under full load.
◀
▶
12VHPWR
CABLE
CABLE
PCI-E 5.0 POWER PERFECTED
Equipped with a high-grade 105C-resistant copper-core PCI-e Gen 5.0 12VHPWR cable, the PX-P provides up to 600W for power-hungry GPUs.
STATIC TO DYNAMIC
The PX1300P comes equipped with the option to switch into semi-fanless operation. In hybrid mode, the 120mm FDB fan will dynamically adjust out of its zero RPM state once the system load hits a certain threshold.
FANLESS MODE DISABLED
FANLESS MODE ENABLED
* The auto start-stop fan operates once the PSU reaches a specific temperature and stops when the PSU temperature is below it.
* The fan speed will also depend on the PSU temperature once it operates.
* The fan speed will also depend on the PSU temperature once it operates.
PEACE OF MIND
The PX1300P includes a slew of well-rounded safeguards, including OPP, OVP, SCP, OTP, OCP, UVP, NLO, and SIP.
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Over Temp Protection
Over Current Protection
Under Voltage Protection
No Load Operation
Surge & Inrush Protection
MAXIMUM COVERAGE
The PX-P is engineered and manufactured at such a high level that DeepCool is offering a lengthy 12 years of trouble-free limited warranty coverage.
* This product is prohibited from being used for mining and other abnormal uses. If the product fails due to it, DeepCool can refuse to provide the relevant warranty service according to the power supply warranty regulations.

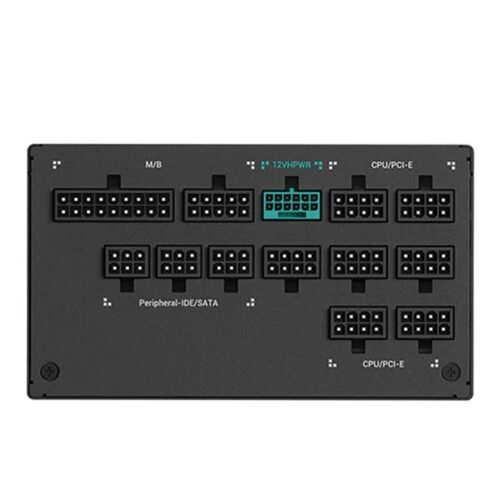

Main Power Connector 24 (20+4)Pin x1
X1
CPU (4+4)Pin x 1
X2
PCI-E (6+2)Pin x1
X5
SATA x4
X2
12VHPWR (16Pin) x1
X1
PCI-E8Pin x 2 to 12VHPWR(16Pin) x 1
X1
4Pin Peripheral x4
X1
Technical Spec
| Type | ATX12V V3.0 |
| Product Dimensions | 150×160×86mm (W x L x H) |
| Efficiency certification | 80Plus Platinum/Cybenetics_Platinum |
| Fan Size | 120mm |
| Fan Bearing | FDB (Fluid Dynamic Bearing) |
| Topology | Interleaved PFC, Full-Bridge & LLC + DC to DC |
| Capacitors | Full Japan Electrolytic Capacitors |
| Power Good Signal | 100-150ms |
| Hold Up Time | ≥16ms |
| Efficiency | ≥92% Under Typical Load(50% Loading) |
| Protection | OPP/OVP/SCP/OTP/OCP/UVP/NLO/SIP |
| Operation Temperature | 0 – 40℃ |
| Regulatory | CE/FCC/CCC/TUV-RH/RCM/EAC/CAN ICES-003(B)/NMB-003(B)/UKCA/BIS/; |
| Erp Regulation | ErP 2014 |
| Environment Protection | WEEE/中国 RoHS/Triman/P65 |
| MTBF | 100,000 Hours |
| EAN P/N | 6933412717331 R-PXD00P-FC0B-CN 6933412717348 R-PXD00P-FC0B-AU 6933412717355 R-PXD00P-FC0B-EU 6933412717362 R-PXD00P-FC0B-JP 6933412717379 R-PXD00P-FC0B-UK 6933412717386 R-PXD00P-FC0B-US 6933412717393 R-PXD00P-FC0B-WO 6933412717409 R-PXD00P-FC0B-BP 6933412717508 R-PXD00P-FC0B-IN |
