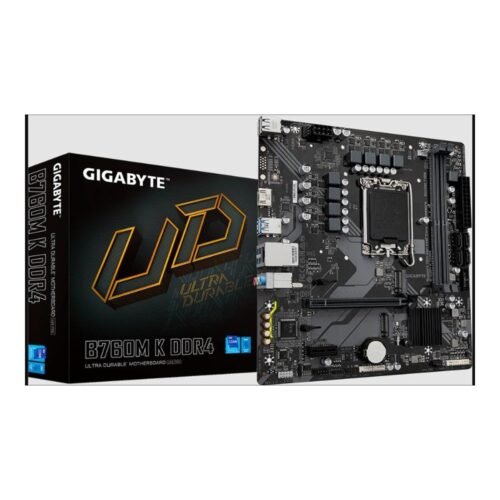

The Gigabyte B760M K DDR4 is a reliable micro-ATX motherboard for 12th/13th/14th Gen Intel Core processors, offering DDR4 memory support and dual PCIe 4.0 M.2 slots for a cost-effective LGA1700 build.
Specifications
| Chipset | Intel B760 Express |
| Socket | LGA1700 (12th/13th/14th Gen Intel Core) |
| Form Factor | Micro-ATX |
| Memory | 2x DDR4 DIMM, up to 64GB, up to 3200MT/s |
| Storage | 2x PCIe 4.0 x4 M.2 |
| VRM | Hybrid 6+1+1 Phases Digital |
| Expansion | 1x PCIe 4.0 x16 |
| Rear I/O | D-Sub, HDMI, 2x USB 3.2 Gen1, 4x USB 2.0, RJ-45 |
| Networking | GbE LAN |
Compatibility: Pairs with any 12th, 13th, or 14th Gen Intel Core, Pentium Gold, or Celeron LGA1700 processor and DDR4 memory.
Frequently Asked Questions
Q: Which CPUs work with the B760M K DDR4?
A: Any 12th, 13th, or 14th Gen Intel Core, Pentium Gold, or Celeron processor on the LGA1700 socket.
Q: Does this board support DDR5?
A: No, this revision uses DDR4 memory exclusively — check the B760M K DDR5 variant if you need DDR5.
Q: How many M.2 slots does it have?
A: Two PCIe 4.0 x4 M.2 slots for fast NVMe storage.
Q: Is this board suitable for a budget build?
A: Yes, it’s a solid, affordable choice for budget and mid-range Intel LGA1700 builds.
