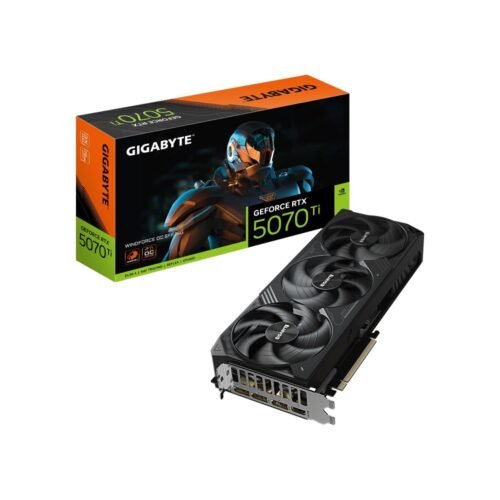

The GIGABYTE GeForce RTX 5070 Ti WINDFORCE OC SFF is a compact, small-form-factor-ready graphics card built around the RTX 5070 Ti GPU (Blackwell architecture) with 16GB of GDDR7 memory. Its shortened WINDFORCE triple-fan cooler and dual BIOS switch make it a strong fit for both full towers and SFF builds.
Specifications
GPUNVIDIA GeForce RTX 5070 TiCUDA Cores8960Memory16GB GDDR7, 256-bit busMemory Speed28 GbpsBoost Clock (OC Mode)2497 MHzInterfacePCI Express 5.0Outputs3x DisplayPort 2.1b, 1x HDMI 2.1bMax Resolution7680 x 4320 (8K)CoolingWINDFORCE triple-fan, Dual BIOS (Performance/Silent)Power Connector1x 16-pinRecommended PSU750WDimensions304 x 126 x 50 mmForm FactorSFF-readySKUGV-N507TWF3OC-16GD
Compatibility: Supports DLSS 4 and DisplayPort 2.1. Its shortened SFF-ready form factor fits both standard mid-tower cases and compact small-form-factor builds. Requires a 750W or higher power supply with a 12V-2×6 (16-pin) connector or adapter.
Frequently Asked Questions
Q: Is this card suitable for a small form factor build?
A: Yes — it is specifically designed as SFF-ready with a shortened cooler while still using the full triple-fan WINDFORCE design.
Q: What power supply do I need?
A: GIGABYTE recommends a 750W or higher power supply with a native 12V-2×6 (16-pin) connector or a supplied adapter.
Q: Does it support ray tracing and DLSS 4?
A: Yes — it fully supports NVIDIA ray tracing and DLSS 4 frame generation and upscaling.
Q: What is Dual BIOS on this card?
A: A physical switch lets you choose between a Performance BIOS (higher fan speeds, more cooling headroom) and a Silent BIOS (quieter operation) for the same card.
