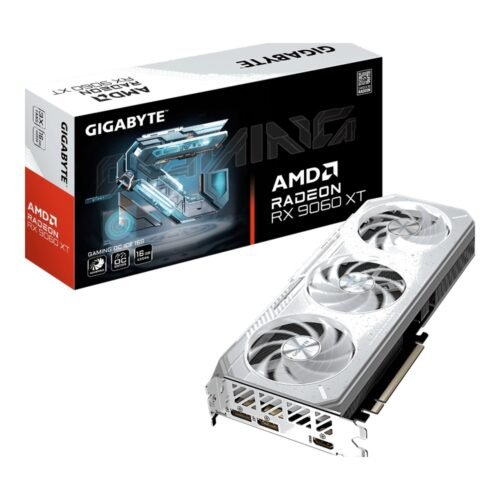

GIGABYTE Radeon™ RX 9060 XT GAMING OC ICE 16G
The GIGABYTE Radeon RX 9060 XT GAMING OC ICE brings AMD’s RDNA 4 architecture to a striking all-white 16GB card. With WINDFORCE cooling, server-grade thermal gel, and a reinforced structure, it delivers factory-overclocked 1440p performance with a cooler that matches white-themed builds.
Key Features
- AMD Radeon RX 9060 XT GPU (RDNA 4, Navi 44 XT) with 16GB GDDR6 memory on a 128-bit bus
- 2048 stream processors, 20 Gbps memory speed, 320 GB/s memory bandwidth
- Boost Clock up to 3320 MHz, Game Clock up to 2780 MHz (factory OC)
- All-white WINDFORCE cooling with alternate-spinning Hawk fans and server-grade thermal conductive gel
- PCIe 5.0 interface, 2x DisplayPort 2.1a + 1x HDMI 2.1b, up to 7680×4320 resolution
- Reinforced backplate structure and compact 2-slot, 281mm design
Specifications
| Model | GV-R906XGAMINGOCICE-16GD |
|---|---|
| GPU | AMD Radeon RX 9060 XT |
| Memory | 16GB GDDR6, 128-bit, 20 Gbps |
| Stream Processors | 2048 |
| Boost / Game Clock | Up to 3320 MHz / Up to 2780 MHz |
| Bus Standard | PCI Express 5.0 |
| Outputs | 2x DisplayPort 2.1a, 1x HDMI 2.1b |
| Max Resolution | 7680 x 4320 |
| Power Connector | 1x 8-pin |
| Recommended PSU | 450W |
| Dimensions | 281 x 118 x 40mm, 2-slot |
Compatibility & Setup Notes
- Requires a case with clearance for a 281mm-long, 2-slot card.
- Needs a single 8-pin PCIe power connector; a 450W or higher PSU is recommended, such as the Darkflash PMT750 750W White for a matching white build.
- PCIe 5.0 x16 slot recommended for full bandwidth, backward compatible with PCIe 4.0/3.0 motherboards.
Questions & Answers
Q: How much power supply do I need for the RX 9060 XT Gaming OC Ice?
A: GIGABYTE recommends a 450W PSU or higher, with a single 8-pin power connector.
Q: How many displays can I connect?
A: Up to 3 displays via 2x DisplayPort 2.1a and 1x HDMI 2.1b outputs.
Q: Is the white color a design theme or just the shroud?
A: The full WINDFORCE cooler, fans, and backplate are finished in white to match light-themed builds, unlike the standard black RX 9060 XT Gaming OC.
Q: How does this compare to AMD’s higher-tier cards?
A: The RX 9060 XT targets 1440p gaming; for higher-tier RDNA 4 performance, see the XFX Swift RX 9070 OC 16GB.
