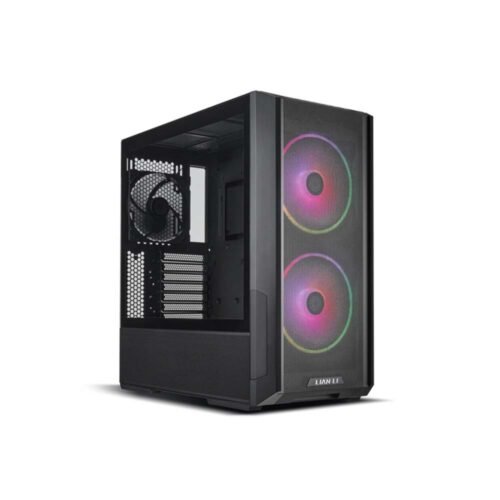

LANCOOL 216
• Mid-tower chassis configurable for air cooling and water cooling
• Airflow optimized front, top and PSU shroud side mesh panels
• Equipped with 2 x front 160 PWM fans (ARGB or non-RGB) and 1 x rear 140mm PWM fan
• Supports 360 radiator at the top, front and a maximum of 10 fans
• Includes rear PCIe fan bracket
• Front I/O that can be relocated to the bottom
• Extensive cable management solution
LANCOOL 216
AIRFLOW FOCUS
The LANCOOL 216 is a mainstream case that features all-around mesh panels for optimal airflow. Thanks to its modular rear panel, it can be optimized for air cooling or water cooling. It includes 2 x 160mm and 1 x 140mm pre-installed PWM fans and an innovative rear PCIe fan bracket to maximize airflow.
AVAILABLE IN TWO COLORS
WHITE RGB / BLACK RGB / BLACK
AIRFLOW OPTIMIZED
AIR COOLING AND
WATER COOLING OPTIMIZED
ALL-AROUND MESH DESIGN
ROTATABLE REAR I/O
UP TO 6 SSD
OR 4 SDD + 2 HDD
MODULAR DESIGN
INCLUDE 2 x 160mm
AND 1 x 140mm PWM FAN
CABLE MANAGEMENT
FRIENDLY
ADDITIONAL ARGB
FRONT I/O (OPTIONAL)
CONTINUOUS
FRONT TO
TOP MESH
To ensure adequate airflow is provided to the system, the LANCOOL 216 features mesh at the front, top, and on the PSU shroud’s side*. The front mesh extends to the top for a continuous mesh panel.
*Note :
The mesh panel beside the PSU shroud chamber is removable but is also an integral part of the support mechanism for the side tempered glass panel. Remove with care!
2 x 160MM FRONT FANS
AND 1 X 140MM REAR FAN INCLUDED
LANCOOL 216
RGB FANS
The included 160mm ARGB fans feature two channels of LEDs (one on the outer rim of the fan, another at the shaft of the fan blades) that can be controlled separately via an optional accessory, or via the motherboard lighting software by connecting them directly to a motherboard 5V 3pin header.
Located in the second chamber behind the motherboard, a SATA-powered fan hub can support up to 4x ARGB and PWM fans.
AIR COOLING MODE / WATER COOLING MODE
The modular motherboard I/O allow users to move the motherboard to a higher position which is more favorable for air-cooled systems, or a lower position for water-cooled systems.
AIR COOLING
Set higher, the motherboard leaves room above the PSU shroud for wider fans.
WATER COOLING
Set lower, the motherboard leaves a 63mm thick gap at the top to install radiator/fan combos, ideal for AIOs or custom water cooling.
FRONT I/O CAN BE RELOCATED
Including a power button, reset button, audio port, 2x USB3.0 ports, and a USB Type C port, the front I/O module can be relocated to the lower left side of the front panel.
HARDWARE COMPATIBILITY
The LANCOOL 216 supports ATX, Micro-ATX, MINI-ITX motherboards, and E-ATX under 280mm in width (when the grommet bar is flipped 180°). In addition, thanks to its symmetrical design, cable management in the 2nd chamber remains unaffected.
LATEST GEN. GPU READY
With enough room for graphics cards up to 392mm in length, and 180mm in height (for air cooling mode), the LANCOOL 216 is compatible with even the largest NVIDIA 4000 series cards.
PRESSURE LEAK FREE
Pre-installed at the front of the top radiator bracket, a seal plate ensures no pressure leak is created when installing smaller than a 360 radiator/3x120mm fans at the top.
REMOVEABLE TOP RADIATOR BRACKET
The top mounting bracket can be completely removed from the case for easier hardware installation. The bracket comes off with the left side frame bar to provide optimal clearance.
Two grooves have been implemented to allow easy passage of fan cables into the second chamber of the case, simplifying cable management and making the overall look of the build better.
PCIE FAN BRACKET
The GPU placed at the top of the expansion slots in air cooling mode opens up the possibility to add a 120mm fan at the rear of the case without obstructing the GPU I/O. This is also possible with a vertically mounted GPU in both air-cooled and water-cooled mode. The additional 120mm fan provides better cooling for the GPU and a greater intake/exhaust balance for the system.
VERTICAL GPU
COMPATIBLE
The PCIe expansion slot panel can be rotated to vertically install the GPUs, only an additional riser cable is required.
STORAGE
UP TO 6 x SSD + 2 X HDD STORAGE CAPACITY
A total of 2 x 3.5” + 6 x 2.5” drives can be installed with dedicated mounts for storage.
CABLE MANAGEMENT
The LANCOOL 216 offers multiple options for easy cable management. Along the cable grommet bar, 3 large velcro straps can hold 2 different sets of cables. 3 small clips are located along the rear side panel, ideal for cleanly routing the CPU 8pin cable, and 2 additional velcro straps are located near the PSU chamber to help hold down the extra PSU cable length away from the ventilation path in the bottom chamber.
OPTIONAL ACCESSORIES
ARGB CONTROL & USB MODULE
An additional ARGB control & USB module can be installed at the side of the front panel to provide better control over the front ARGB fans. The ARGB control & USB module offers the option to create custom lighting styles by mixing the light effects of both LED channels individually.
DUST FILTER
For users who take dust management to the next level, a magnetic front panel dust filter is available as an optional accessory. The dust filter fits perfectly between the front panel and the front fans.
PCIE CABLE
For vertical GPU mounting, only an additional riser cable is required. With a PCB that has a hole spacing of 112.7mm, the Lian-Li PCIe 4.0 X16 RISER CABLE is compatible with the LANCOOL 216.
SPECIFICATIONS
| PRODUCT NAME | LIAN LI LANCOOL 216 | LIAN LI LANCOOL 216 RGB | LIAN LI LANCOOL 216 RGB with controller (LAN-1X/W) | ||
|---|---|---|---|---|---|
| MODEL | LANCOOL 216-X | LANCOOL 216R-X | LANCOOL 216R-W | LANCOOL 216RC-X | LANCOOL 216RC-W |
| DIMENSIONS | (D) 480.9mm x (W) 235mm x (H) 491.7mm | ||||
| COLOR | Black | Black | White | Black | White |
| MATERIAL | Steel / 4.0mm Tempered Glass | ||||
| MOTHERBOARD SUPPORT | E-ATX (Under 280mm)/ATX/Micro-ATX/Mini-ITX | ||||
| FAN SUPPORT | Top: 3 x 120mm / 2 x 140mm PSU Cover: 2 x 120mm / 2 x 140mm (Air Cooling mode) Front: 3 x 120mm / 2 x 140mm / 2 x 160mm Rear: 1 x 120mm / 1 x 140mm PCIe Fan Bracket: 1 x 120mm |
||||
| RADIATOR SUPPORT | Front: 360 / 280 / 240mm Top: 360 / 280 / 240mm Bottom: 240mm |
||||
| PSU SUPPORT LENGTH | ATX (Under 220mm) | ||||
| GPU LENGTH CLEARANCE | 392mm (max) | ||||
| CPU COOLER HEIGHT CLEARANCE | 180.5mm (max) | ||||
| DRIVE | Drive Cage：2 x 2.5” SSD + 2 x 3.5” HDD PSU Cover：2 x 2.5” SSD Behind MB tray: 2 x 2.5” SSD |
||||
| EXPANSION SLOT | 7 | ||||
| I/O PORTS | 1 x Power Button 1 x Reset Button 2 x USB 3.0 1 x USB Type C 1 x Audio |
1 x Power Button 1 x Reset Button 2 x USB 3.0 1 x USB Type C 1 x Audio Fan Rim Lighting Effect Color Button Fan Rim Lighting Effect Mode Button 2 × USB 3.0 Fan Blade Lighting Effect Color Button Fan Blade Lighting Effect Mode Button |
|||
| INCLUDED FANS | Front: 2 x 160mm PWM Fans Rear: 1 x 140mm PWM Fan |
Front: 2 x 160mm ARGB Fans Rear: 1 x 140mm PWM Fan |
|||
| DUST FILTERS | 1 x Bottom | ||||
