• Two L-shaped light strips on top and bottom with befitting lighting effects. • Front and side tempered glass panels with a removable pilar for a seamless view of components and RGB lighting. • 2 heights adjustable motherboard rear I/O and mounting points. • Supports up to 420mm radiator on top, and 360mm radiator on side and bottom. • Supports 140mm fans x3 on top, side, and bottom. • Cable management friendly with more space at the second chamber. • Optional accesories for vertical GPU or upright GPU mounting.

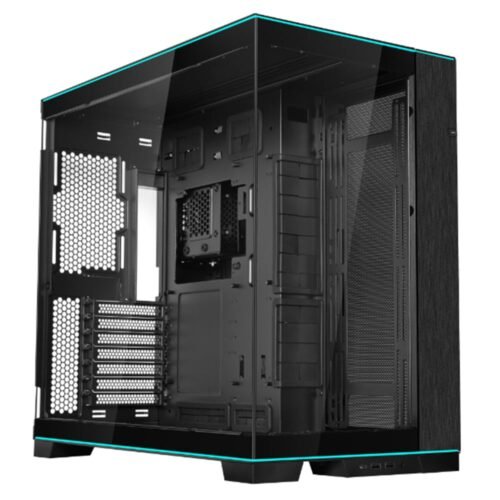

Introducing the all-new O11D EVO RGB, featuring dual ARGB light strips running through the top and bottom of the chassis，creating a stunning look. And the expanded internal space provides greater component compatibility, bringing an exceptional PC-building experience.
REVERSIBLE CHASSIS
DUAL ARGB STRIPS
REMOVABLE FRONT PILLAR
SUPPORTS TOP 420MM RADIATOR
SUPPORTS 10 FANS
ADJUSTABLE MOTHERBOARD INSTALLATION
8 DRIVES CAPACITY
CABLE MANAGEMENT FRIENDLY
For certain batches, fitting the 3.5″ HDD into the hard drive cage might be challenging. Please contact us to inquire about a replacement.
TWO COLORS/TWO MODES
Derived from the O11D EVO, the O11D EVO RGB can be displayed in two modes with just a few simple steps, allowing for a left or right view. It also comes in two color options: Black and White.
● Brushed Aluminum
● Black Coated Mesh Panel
● Tinted Tempered Glass
● White Coated Mesh Panel
● Clear Tempered Glass
● Aluminum with white powder coating
ARGB STRIPS ON THE TOP AND BOTTOM
The O11D EVO RGB features a 1.5mm thick L-shaped ARGB strip at both the top and bottom of the chassis that can switch between 14 different lighting effects, adjust brightness and color, and sync with the motherboard.
M: Next/Previous Light Mode Button: Press 3 seconds to sync MB, press 3 seconds again to cancel. Go back and forth between lighting effects without needing to circle around the loop.
C: Light Color Button: Switch between 11 colors, press 3 seconds to activate Pure Color Mode,press 3 seconds again to cancel.
B: Light Brightness Button: Switch between 5 brightness levels-100%, 75%, 50%, 25%,0%.
RGB Lighting Mode
Pure Color Lighting Mode
COMPLETELY UNOBSTRUCTED VIEW
The O11D EVO RGB’s front pillar can now be easily removed, providing a seamless view for showcasing hardware without affecting the case’s structure.
LARGER SIZE, HIGHER COMPATIBILITY
Compared to the O11D EVO, the O11D EVO RGB is slightly larger, which provides higher component compatibility: it supports a 420mm radiator at the top (requires a separate bracket, 360mm radiator at the side/bottom, and 3x140mm fans at all three sides.
Fan/Radiator Support
1. TOP
Radiator：420/360mm
Fan：3×120mm/3×140mm
3. REAR
Fan：1×120mm
2. SIDE
Radiator：360/280mm
Fan：3×120mm/3×140mm
Note
Screw points are missing on the top and bottom when mounting 3x140mm fans; it only supports UNI FAN, which holds well without screws on the top and bottom.
4. BOTTOM
Radiator：360mm
Fan：3×120mm/3×140mm
MODULAR DESIGN FLEXIBLE CONFIGURATION
Modularity has always been one of the design languages of the O11D EVO series, and the O11D EVO RGB is no exception.
At the bottom of the chassis, the I/O module with a wealth of ports, can be relocated to 3 different locations without the use of any tools.
In addition, we have a separate I/O module O11DE-3XV2/O11DE-3WV2 as an optional accessory to meet the needs of the users that require more I/O ports.
Struggle-Free Fan Brackets
Equipped with a quick-release design, the fan brackets of all three sides can be easily removed or installed.
The side bracket can be flipped vertically or horizontally, offering 4 different installation styles.
TOWARD THE MAIN CHAMBER
Supports up to 83.2 mm thick radiator/ fan combo in the main chamber.
TOWARD THE SECOND CHAMBER
Supports up to 113.7 mm thick radiator/ fan combo in the main chamber.
TOWARD THE MOTHERBOARD
(LEFT SIDE)
TOWARD THE FRONT PANEL
(RIGHT SIDE)
The distance between the left-sided and right-sided installation positions reaches 20mm, so users who use EATX motherboards can choose the right-sided installation to avoid the fans from being blocked by the motherboard while gaining more cable management space. Additionally, the O11D EVO RGB features a newly designed vertical corner grommet, making cable management friendlier even when using a large motherboard.
NOTE: Unlike the O11D EVO, the O11D EVO RGB’s top fan bracket now supports direct radiator installation without disassembly, making it more convenient to use.
ADJUSTABLE MOTHERBOARD INSTALLATION
The O11D EVO RGB features two sets of pilot holes at different heights, allowing the users to adjust the installation position of the motherboard to accommodate different builds.
NOTE: To install a motherboard with special specifications
(e.g., with a thicker shield), please trim the rubber pads accordingly.
Upper Mode
-
- Top-83.5mm, supports 3 x 120mm/3 x 140mm fans, 360mm/280mm radiator
- Top-63.1mm, supports 420mm radiator
-
- Bottom-30mm (below the expansion slots), supports 3 x 140mm fans
- Bottom-92.3mm (below a 4-slot thick GPU), supports 3 x 120mm/ 3 x 140mm fans, 360mm/280mm radiator
Lower Mode
-
- Top-103.8mm, supports 3 x 120mm/3 x 140mm fans, 360mm/280mm radiator
- Top-83.4mm, supports 420mm radiator
-
- Bottom-30mm (below the expansion slots), supports 3 x 140mm fans
- Bottom-72mm (below a 4-slot thick GPU), supports 120mm/140mm fans, 360mm/280mm radiator
O11D EVO
-
- Top-83.6mm, supports 3 x 120mm/3 x 140mm fans, 360mm/280mm radiator
-
- Bottom-70mm (below a 4-slot thick GPU), supports 3 x 120mm/3 x 140mm fans, 360mm/280mm radiator
CUSTOMIZED CABLE MANAGEMENT
O11D EVO RGB features an improved cable management design, featuring large VELCRO straps near the PSU chamber, dual-layer cable clips that can hold both the bulky and thinner cables, and 15mm of extended space from the rear of the PSU chamber for more cable management room.
The PSU mounting bracket protrudes 15mm from the rear of the case, allowing extra space for cable management. Additionally, a cable tie point along the rear of the case helps with the management of rear I/O cables.
ELEVATE YOUR GPU
O11D EVO RGB comes with the new anti-sag bracket GB-003 with easy height adjustment to support heavy GPUs.
FRIENDLY STORAGE CAPACITY
O11D EVO RGB offers multiple easily accessible storage mounting locations that support up to 8 × SSDs or 4 × HDDs + 2 × SSDs.
Side Fan Bracket:
2 × 3.5″ HDD or 4 × 2.5″ SSD
Behind MB Tray:
2 × 2.5″ SSD
Hard Drive Cage:
2 × 3.5″ HDD or 2.5″ SSD
OPTIONAL ACCESSORIES
Included 2 silicone covers for low mode configuration to provide a clean look for cable management.
① UPRIGHT GPU BRACKET
O11DE-9X/O11DE-9W
O11D EVO RGB is compatible with the upright GPU bracket (black/white) of the O11D EVO. Use it to mount large graphics cards in a unique way for better cooling performance.
NOTE：The 600mm/900mm extension PCIe cable needs to be purchased separately.
(PW-PCI-4-60X/PW-PCI-4-60W/PW-PCI-4-90X/PW-PCI-4-9)
② FRONT MESH KIT
O11DERGB-4X / O11DERGB-4W
The aluminum fine mesh panel replaces the front glass panel to provide additional air intake with the support of fans.
③ 4- SLOTS VERTICAL GPU KIT
VG4-4-V2X/VG4-4-V2W
Supports up to 4 slots GPU at vertical mounting position to show off in most of LIAN LI cases. Includes a PCIe 4.0 riser cable for seamless connectivity.
