Sleek and classic exterior with brushed aluminum housing
OVP/OPP/SCP/UVP/OCP/OTP protection
12VHPWR connector cable that is compatible with 40 series graphic card

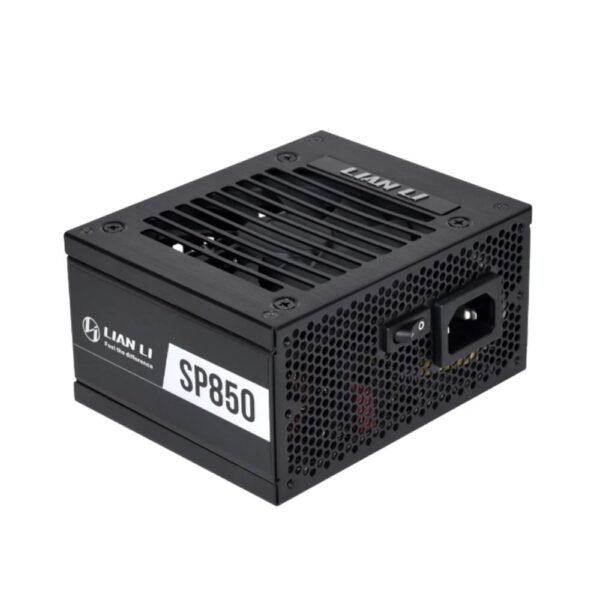

SP850
Performance SFX Form Factor Power Supply
The SP850 is a stylish high-performance PSU that perfectly fits small-form-factor PCs while supporting power-hungry components.
AVAILABLE IN TWO COLORS
The fully modular small PSU is offered in a sleek black aluminum housing, or in a completely white design.
Black
White
80 PLUS GOLD CERTIFICATE
SP850 achieves 91.55% efficiency 115VAC at 50% load, which edges close to the 80PLUS PLATINIUM a requirement at 92% efficiency 115VAC at 50%, ensuring less power wastage.
SP850 COMPOSITION
● Aesthetic – Aluminum Housing
● Silent – Zero RPM mode
● Powerful – 850 Watts
● Perfect Size – SFX Form
● Practical – Fully Modular Design
● Longevity – Japanese Electrolytic Capacitors
COOLING IN SILENCE
To achieve minimal acoustic levels, the SP850 features a 92mm hydraulic bearing fan that operates at zero RPM mode until the PSU reaches 40% load or once the ambient temperature reaches 60°C.
JAPANESE ELECTROLYTIC CAPACITORS
Premium Japanese electrolytic capacitors provide great durability and long-term reliability, as well as offer the highest stability.
UPGRADE 12VHPWR CABLE
The new PCIe 5.0 12+4-pin cable is 16 AWG size to transfer 600W and doesn’t need the use of an adaptor for the latest GPUs.
NOTES FOR THE USE OF CABLE
Make sure that all components (inluding GPU/ CPU/RAM…) shouldn’t exceed the waltage of the PSU.
All connectors shall be insert tightly.
Do not bend the cable near the connector.
BUY UPGRADE CABLE
FULLY MODULAR BRAIDED CABLES
All necessary braided cables are included right out of the box, ensuring reduced cable clutter and a better aesthetic.
Motherboard Connector x1
CPU / ATX12V Connector x2
1 x 8 PIN PCIe Connector
2 x 8 PIN PCIe Connector x1
SATA Connector x2
Peripheral Connector x1
12VHPWR Connector x1
MULTI POWER CORD TYPES
SUFFICIENT PROTECTION
Features OCP (Over Current Protection), OVP (Over Voltage Protection), SCP (Short Circuit Protection), OPP (Over Power Protection), UVP (Over Voltage Protection), OTP (Over Temperature Protection) and inrush current limiter that make the PSU operating in stable condition.
FIVE YEARS WARRANTY
LIAN LI offers a 5-year limited warranty for the SP850, reflecting our confidence in the quality of our performance SFX PSU.
SPECIFICATIONS
MODEL
SP850
DIMENSIONS
(D)100 mm X (W)63.5mm X (H)125 mm
POWER SUPPLY DESIGN
Fully modular
COLOR
Black / White
MATERIAL
Steel/brushed aluminum housing
FORM FACTOR
SFX
CERTIFICATION
80 PLUS Gold
POWER SUPPLY DESIGN
Fully modular
MAX. DC OUTPUT
850W
COMBINED +3.3V & +5V
100W
COMBINED +12V
840W
INPUT VOLTAGE
100-240Vrms
INPUT FREQUENCY RANGE
50Hz-60Hz
PFC
Active PFC(PF)>0.90 at full load
EFFICIENCY
93.53% MAX
PROTECTIVE CIRCUIT
OCP OVP OTP OPP SCP UVP
CONNECTORS
1 x 24/20-Pin motherboard connector (300mm) x1pcs
1 x 8/4+4 Pin CPU/ATX 12V connector (600mm) x2pcs
1 x 8/6+2 Pin PCle connector (400mm) x1pcs
2 x 8/6+2 Pin PCle connector (400mm-120mm) x1pcs
4 x SATA connector (120mm120mm-120mm-120mm) x2pcs
4 x 4-Pin Peripheral connector (120mm-120mm-120mm- 120mm) x1pcs
12VHPWR connector (400mm) × 1pcs
