Strimer Plus V2
- Highly customizable addressable RGB extension cables.
- Available for motherboard 24-pin, GPU dual 8-pin, and GPU triple 8 pin.
- Create a unique PC look with outstanding quality and material
- Compatible with L-Connect 3 for personalizing light effects
CUSTOMIZATION
The last sparkling thing you desire to see in the PC Components
In the Modding World, inside of the limited space of the Chassis
Artisans create their own specific marvelous ideas
Train their special techniques
By using time and their gaze to build masterpieces
Collecting the glories from claps
Strimer, we know what Artisans want
GLORIOUS
Glamorous Neon lights effects
Like a rainbow waterfall flows
Red Orange Yellow Green Blue Purple
It is a shining rainbow from the front of Motherboard
UNIQUE
Ultimate Faith in PC DIY
Players’ outstanding thoughts is the engine of the DIY market
Providing the Creative hardware is the essential fuel of the DIY market
We lead the 24 Pin RGB PSU cable to explore the limitation
Satisfaction of PC Modding imagination
1.5 CM
Strimer has two thick layers up to 1.5cm
Requires enough space behind the motherboard tray
DUAL LAYERS
Optic Fiber layer and Power Supply layer perfectly separate
2 layers structure independent design Allow Strimer’s circuit flows steady and no interference
Strimer Optic Fiber layer Electricity and lighting effects controlled and supplied independently
Power Supply layer harmless connected ATX Power supply with the 24 pin socket of Motherboard
TWO WAYS
Support Motherboard the same lighting effect
Support 5v ARGB enabled motherboard
Synchronize with motherboard for integrating control
Strimer packed with the PCI bracket type lighting effect controller
Simple and easy customization without using motherboard controlling
MAGNIFICENT
Enable the components inside of the chassis glorious
12 STRINGS
Fine Optic Fiber Line
Exclusively use high quality optic fiber material
Insure lighting transmission not only smoothly but evenly
12 diminutive LED illuminators weld perfectly with optic fiber interface
Optical lighting secured
24 CM
Strimer length widely for 24 cm
Connect to the latest ATX
Compatible for the goods
Fulfill players for the diversified needs of cables
DOWNLOAD
SPECIFICATIONS
| Model | Strimer 24pin |
| Type | 24-pin PSU extension cable |
| Dimensions | 240mm x 53mm x 15mm |
| Weight | 180g |
| PCI Bracket | Addressable RGB controller included |
THREE TYPES ARGB EXTENSION CABLES
Evolution of the award-winning STRIMER and STRIMER PLUS that puts the finishing RGB touch on your PC.

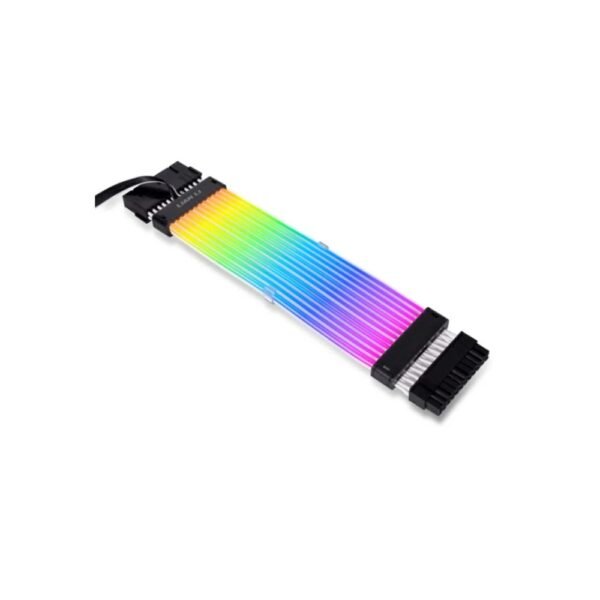

STRIMER PLUS V2 24-PIN
for motherboard connector
BUY NOW
STRIMER PLUS V2 3×8-PIN
for triple 8 PIN GPU connector
BUY NOW
STRIMER PLUS V2 8-PIN
for dual 8 PIN GPU connector
BUY NOW
12+4-PIN to 12+4-PIN
12 light guides
For 12VHPWR GPU connector
12+4-PIN to 12+4-PIN
8 light guides
For 12VHPWR GPU connector
3X8 PIN to 12+4-PIN
8 light guides
For 12VHPWR GPU connector
SUPPORTS UP TO:
450 W, if power supply PCIe cable is 18 Awg.
600 W, if power supply PCIe cable is 16 Awg.
LAST PIECE OF RGB SET-UP YOU NEED
Upgrade the RGB in your PC with the ARGB extension cables.
Next Level of Brightness
Introduce a new side light strip, brightening STRIMER PLUS V2 in different ways.
STRIMER PLUS V2
STRIMER PLUS V1
Numerous LEDs
Allocating many LEDs evenly to glow your build with complex lighting effects.
24-PIN
12 light guides
120 LEDs
8-PIN
8 light guides
108 LEDs
3×8-PIN
12 light guides
162 LEDs
12+4-PIN to 12+4-PIN
12 light guides
162 LEDs
12+4-PIN to 12+4-PIN
8 light guides
108 LEDs
3×8-PIN to 12+4-PIN
8 light guides
108 LEDs
Smooth Lighting Style
Illuminate the STRIMER PLUS V2 with a sleek design by reducing the lighting strips width to 2.1mm.
STRIMER PLUS V2
STRIMER PLUS V1
HIGH QUALITY DESIGN
The well-engineered product that glows with quality.
Slim and Flexible
The thickness of the RGB zone and the cable on the V2 are reduced to 8mm, ensuring flexibility for all kinds of configuration.
STRIMER PLUS V2
STRIMER PLUS V1

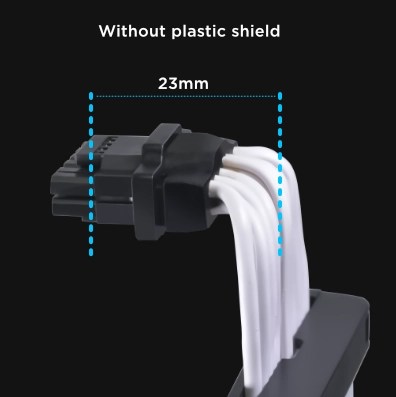

Flexible Clearance
A minimum of 28mm of clearance is required when installing the 12VHPWR connector. For situations where less clearance is available, the plastic shield can be removed to reduce the required clearance to 23mm.
Match the Color of your Build
Includes extra white clips to match the hardware color inside your PC.
ARGB SYNCHRONIZATION WITH THE MOTHERBOARD
The GPU extension cable has a 3 PIN 5V ARGB adaptor to connect to the motherboard directly.
Note: Lower 50% of the brightness when applying static white.
(Check detailed instructions from manual)
ADDITIONAL ACCESSORY

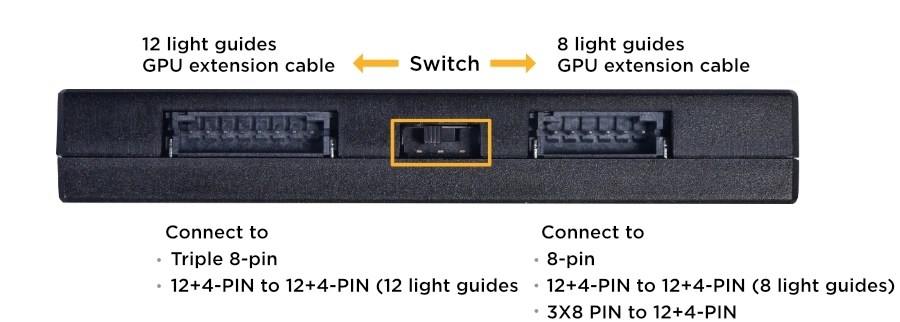

STRIMER L-CONNECT 3 CONTROLLER
The controller that is included in STRIMER PLUS V2 24-PIN (or available separately) offers full control of L-Connect 3.
Connect to PSU SATA Cable
Note: If using the static white lighting effect frequently, please connect to the SATA header as close to the PSU as possible an do not connect other ARGB dervice (eg. UNI HUB) to the same sata cable.
Connect to
MB 5V ARGB header
Connect to
MB USB 2.0 header
BUY NOW
USE L-CONNECT 3 SOFTWARE TO CONTROL
STRIMER PLUS V2
Gain full control and preview the lighting effects of the STRIMER PLUS V2 with the L-Connect 3 interface.
UNLOCK YOUR IMAGINATION OF LIGHTING EFFECTS
Without the need of opening the case, STRIMER PLUS can now be controlled via the L-Connect 3 software with 11 Individual modes and 13 combined lighting modes. The highly customizable software brings the option of setting different sophisticated lighting effects on each STRIMER PLUS or even on each channel (2 light strips).
Combined Lighting Effects
Display your PC with the new combining lighting effects.
Individual Channel Lighting Effects
With 24-pin at 6 channels, the Dual 8-pin at 4 channels, and the triple 8-pin at 6 channels, plenty of personalized light effects can be accomplished by L-Connect 3.
Quick Sync with UNI FANs
The quick sync function efficiently syncs all LIAN LI devices’ lighting effects in one click. Moreover, you can sync all devices to the motherboard.
PACKAGE CONTENT
24-PIN
12 light guides
Include Controller for L-Connect 3
8-PIN
12 light guides
Include MB ARGB 3-PIN cable adaptor
3×8-PIN
8 light guides
Include MB ARGB 3-PIN cable adaptor
12+4-PIN to 12+4-PIN
12 light guides
Include MB ARGB 3-PIN cable adaptor
12+4-PIN to 12+4-PIN
8 light guides
Include MB ARGB 3-PIN cable adaptor
3X8 PIN to 12+4-PIN
8 light guides
Include MB ARGB 3-PIN cable adaptor
SPECIFICATIONS
| PRODUCT NAME | LIAN LI ADDRESSABLE RGB STRIMER PLUS V2 24-PIN | LIAN LI ADDRESSABLE RGB STRIMER PLUS V2 8-PIN | LIAN LI ADDRESSABLE RGB STRIMER PLUS V2 TRIPLE 8-PIN |
|---|---|---|---|
| MODEL | PW24-PV2 | PW8-PV2 | PW12-PV2 |
| DIMENSIONS | 267mm(L )X 56.6mm (D) X 8mm(H) | 345mm(L) X 43.5mm (D) X 8mm(H) | 345mm(L) X 56.3mm (D) X 8mm(H) |
| MATERIAL | SILICONE/TPE | ||
| CABLE LENGH | 220mm | 300mm | 300mm |
| GAUGE | 18AWG | ||
| NUMBER OF LEDS | 120 | 108 | 162 |
| ACCESSORIES | Controller for L-Connect 3 | Cable Adaptor for Motherboard ARGB 3-Pin | Cable Adaptor for Motherboard ARGB 3-Pin |
| WARRANTY | 1 year | ||
| PRODUCT NAME | STRIMER PLUS V2 12VHPWR | ||
|---|---|---|---|
| MODEL | PW16-12PV2 | PW16-8PV2 | PW168-8PV2 |
| FEMALE CONNECTOR | 12+4pin | 12+4pin | 3x8pin |
| MALE CONNECTOR | 12+4pin | 12+4pin | 12+4pin |
| DIMENSIONS | 381mm (L) X 56.4mm (D) X 8mm (H) | 381mm (L) X 39.8mm (D) X 8mm (H) | 381mm (L) X 39.8mm (D) X 8mm (H) |
| MATERIAL | SILICONE/TPE | ||
| CABLE LENGTH | 320mm | 320mm | 335mm |
| GAUGE | 16AWG | ||
| LIGHT GUIDES | 12 | 8 | 8 |
| NUMBER OF LEDS | 162 | 108 | 108 |
| ACCESSORIES | Cable adaptor for motherboard ARGB 3-PIN | ||
| WARRANTY | 1 year | ||
