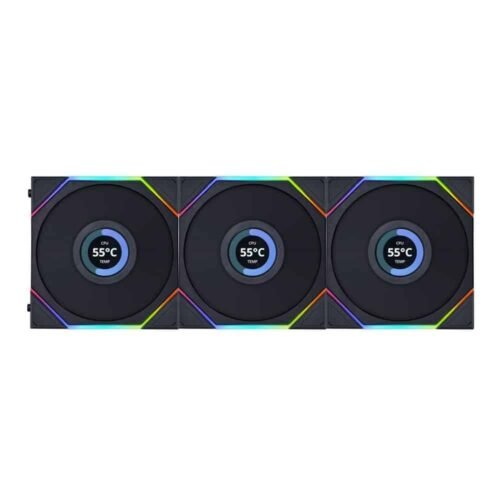

UNI FAN TL LCD
- 1.6” LCD Screen with 400×400 resolution.
- Supports GIF, MP4, JPG, and PNG files.
- Suitable as a PC case with airflow and noise optimization.
- Comes with Lian Li exclusive flow-through animations through L-Connect 3.
- FDB bearing that provides stability, durability, and longevity.
- Enlarged infinity mirror around the frame with a longer light guide for a unified daisy-chained look.
- Features two light zones for increased lighting customizability.
- UNIFAN interlocking system for ease of cable management.
- LED lighting and fan speed controller shared with UNIFAN TL.
- Complete software control with L-Connect 3.
- The controller is required to use the fans.
SLIDE IN
DAISY-CHAIN STYLE
1.6” LCD SCREEN
STABLE MOTOR
ENLARGED INFINITY MIRROR
DUAL ZONE LIGHTING EFFECTS
L-CONNECT 3 SOFTWARE
- As of now, some Z790 motherboards can only support up to 7 devices via its USB 2.0 ports. This means that only 7 TL LCDs can be used, or less when paired with other USB devices. For example, when paired with GA II LCD AIO, only 5 TL LCDs can be used. When paired with Strimer Plus cable, only 6 TL LCDs can be used. To solve this, you can use our 1 to 3 USB hub (connects via motherboard back IO) for other USB devices, and stably use 7 TL LCDs.
List of tested Z790 motherboards can be found here. - Loosen the screws to ensure connectivity of the group of TL LCD fans. This can help resolve issues such as LCD screen not displaying or being stuck at the logo screen.
AVAILABLE IN TWO COLORS/ TWO SIZES/ TWO ORIENTATIONS
Elevate your PC setup with UNI FAN TL LCD black and white fans, available in 120mm and 140mm sizes with normal and reverse blades.
Normal Blade
Reverse Blade
Meet all kinds of configuration needs with our full lineup.
Note: Do not mount the fan with the LCD facing inward, as it may result in damage to the screen.
EMPOWER WITH CUSTOMIZABLE DISPLAY
The world’s 1st PC case fan with a LCD screen, which can be personalized and controlled using L-Connect 3.
● Power PCIe Cable
● 400 × 400 Resolution
● 500 (TYP) nits Brightness
● IPS Type Display
● SRGB-24-bit Full Color
PERFORMANCE DETAIL AT A GLANCE
Monitor the temperature and loading of your CPU and GPU, as well as the fan speed, instantly with built-in hardware monitor dashboards on the screen.
Note: The more sensors used, the higher the CPU load will be. We suggest you to keep sensor display at a maximum of 3.
UNIQUE STYLE
Elevate your system’s style by uploading your own personalized MP4 / GIF / JPG / PNG.
NEXT GENERATION OF UNI FAN
Building on the design success of the UNI FAN series interlocking system, the UNI FAN TL series takes clutter-free setups to the next level.
Durable Daisy-Chain Solution
Experience a hassle-free setup with the slide-in daisy-chaining mechanism, securely holding the fans in place and ensuring a snug fit for easy configuration.
Seamless Connection
A single cable is all you need to connect a group of up to 3 TL LCD fans to the controller, which supports a maximum of 7 TL LCD fans per controller, with a group of 3 on each port (up to 16 TL+TL LCD fans in total).
To operate 8 to 12 TL LCD fans, please use 2 controllers simultaneously. Note that L-Connect 3 doesn’t support more than 13 TL LCD fans.
Note: The controller cable is only applicable on the pin side of the fan, do not install it the other way.
Well-Adapted for all Configurations
The interlocking key at the end of TL LCD fans is removable for enhanced compatibility and less interference with other components.
STABLE OPERATION
UNI FAN TL LCD is engineered for stable fan blade operation, ensuring efficiency at a low noise level.
METAL BEARING SHELL
To securely hold the impeller to the shaft
MAGNETIC RUBBER RING
To provide extra support for fan operation
STATOR
To provide a rotating magnetic field that generates momentum
BRAZZ NUT
To Prevent oil leaks
FLUID DYNAMIC BEARING (FDB)
To effectively reduce the internal friction for improved durability
SHAFT AND COPPER BASE
To ensure fan blade stability during operation
THICKER FAN FRAME
28mm thick fan frame helps deliver more airflow and static pressure
RUBBER PADS
To reduce vibrations and maintain extremely low noise levels
BREEZE YOUR SYSTEM
Redefining PC cooling experience with a fan that doesn’t compromise on thermal control, all while offering a personalized screen for a touch of individuality.
| MODEL | AIRFLOW | STATIC PRESSURE | NOISE |
|---|---|---|---|
| TLLCD120 | 62 CFM | 2.9 mmH20 | 27 dB(A) |
| TLLCD120 REVERSE | 54.3 CFM | 2.83 mmH2O | 31 dB(A) |
| TLLCD140 | 68.1 CFM | 3.5 mmH2O | 28.5 dB(A) |
| TLLCD140 REVERSE | 64 CFM | 3.1 mmH2O | 29.4 dB(A) |
CUSTOMISABLE FAN SPEED
Able to set different fan speeds for each fan cluster to optimize different scenarios of use providing flexibility for radiator or case fan needs with L-Connect 3.
SOPHISTICATED CONTINUOUS RGB LIGHTING
Each UNI FAN TL fan has 26 LEDs with an elegant side diffuser on the 2 sides of the fan frame that wraps around the edges of the anti-vibration pad.
DAZZLE WITH INFINITY MIRROR
Illuminate your setup with the UNI FAN TL’s enlarged infinity mirror (30% larger than UNI FAN SL-INF on the side) on both sides of the frame, showcasing clear and 0.7mm gap multi-layer lighting effects.
INDIVIDUAL LIGHTING EFFECTS
Easily customize different lighting effects on the two sides of the LED strips using L-Connect 3 for a unique setup. You can also sync your TL fans and apply the same lighting effect you like across all of them.
SMOOTH APPEARANCE
Cover the screws with anti-vibrate rubber pads for a seamless and uninterrupted aesthetic appeal.
SEAMLESS SOFTWARE
L-Connect 3 offers complete control over the UNI FAN TL series, including the lighting effects, fan speed, and LCD screen.
Note: Please update firmware at Settings > Device for the first time use.
TWO FANS, ONE CONTROLLER
UNI FAN TL and TL LCD share the same controller, enabling the connection of up to 16 TL and TL LCD fans simultaneously, with a maximum of 7 TL LCD fans.
Note: TL and TL LCD share the same controller but use different controller cables. Do not mix the controller cables.
Fan Group Signal
Each port supports a maximum of 10 TL fans or 3 TL LCD fans
Note: The 1st port doesn’t support TL LCD.
Power PCIe Cable
Power up the connected fans
USB Cable
Plug directly into a motherboard 9-pin USB header
Note: Do not use a splitter; plug directly for a stable signal
5V ARGB / 4 PIN PWM Cable
Required for motherboard sync function
Note: The controller is available separately or in a triple pack only. UNI FAN TL series fans without the controller will not be functional.

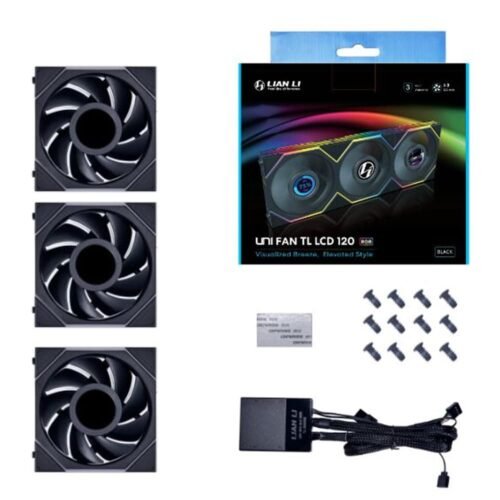

PACKAGE CONTENT
UNI FAN TLLCD120 White Triple Pack
UNI FAN TLLCD120 Black Triple Pack
UNI FAN TLLCD120 White Single Pack
UNI FAN TLLCD120 Black Single Pack
UNI FAN TLLCD120 Reverse White Triple Pack
UNI FAN TLLCD120 Reverse Black Triple Pack
UNI FAN TLLCD120 Reverse White Single Pack
UNI FAN TLLCD120 Reverse Black Single Pack
UNI FAN TLLCD140 White Single Pack
UNI FAN TLLCD140 Black Single Pack
UNI FAN TLLCD140 Reverse White Single Pack
UNI FAN TLLCD140 Reverse Black Single Pack
SPECIFICATIONS
| PRODUCT NAME | UNI FAN TL LCD 120 | UNI FAN TL LCD 140 | ||||
|---|---|---|---|---|---|---|
| MODEL | 12TLLCD3B | 12TLLCD3W | 12TLLCD1B | 12TLLCD1W | 14TLLCD1B | 14TLLCD1W |
| COLOR | Black | White | Black | White | Black | White |
| NUMBER OF FANS | 3 | 3 | 1 | 1 | 1 | 1 |
| CONTROLLER | Yes | No | NO | |||
| CONNECTOR TYPE | UNI FAN Controller Cable x 1 (P-7P) | UNI FAN Controller Cable x 1 (P-7P) | UNI FAN Controller Cable x 1 (P-7P) | |||
| FAN DIMENSION | 124 x 120 x 28 mm | 144 X 140 X 28 (mm) | ||||
| FAN SPEED | 0, 350~1900 RPM | 0, 400~1600 RPM | ||||
| MAX. AIR PRESSURE | 2.9 mmH2O (Maximum) | 3.5 mmH2O (Maximum) | ||||
| MAX. AIRFLOW | 62 CFM (Maximum) | 68.1 CFM (Maximum) | ||||
| ACOUSTIC NOISE | 27 dB(A) Max | 28.5 dB(A) Max | ||||
| INPUT POWER | 7.08W | 6.72W | ||||
| MATERIAL | PA66 / PBT | |||||
| RATED VOLTAGE | DC 12V (FAN) & 5V (LED) | |||||
| BEARING TYPE | Fluid Dynamic Bearing (FDB) | |||||
| OPERATE VOLTAGE | DC12V & 5V | |||||
| WARRANTY | 3 years | |||||
| PRODUCT NAME | UNI FAN TL LCD 120 Reverse Blade | UNI FAN TL LCD 140 Reverse Blade | ||||
|---|---|---|---|---|---|---|
| MODEL | 12RTLLCD3B | 12RTLLCD3W | 12RTLLCD1B | 12RTLLCD1W | 14RTLLCD1B | 14RTLLCD1W |
| COLOR | Black | White | Black | White | Black | White |
| NUMBER OF FANS | 3 | 3 | 1 | 1 | 1 | 1 |
| CONTROLLER | Yes | No | NO | |||
| CONNECTOR TYPE | UNI FAN Controller Cable x 1 (P-7P) | UNI FAN Controller Cable x 1 (P-7P) | UNI FAN Controller Cable x 1 (P-7P) | |||
| FAN DIMENSION | 124 x 120 x 28 mm | 144 X 140 X 28 (mm) | ||||
| FAN SPEED | 0, 350~1900 RPM | 0, 350~1600 RPM | ||||
| MAX. AIR PRESSURE | 2.83 mmH2O (Maximum) | 3.1 mmH2O (Maximum) | ||||
| MAX. AIRFLOW | 54.3 CFM (Maximum) | 64 CFM (Maximum) | ||||
| ACOUSTIC NOISE | 31 dB(A) Max | 29.4 dB(A) Max | ||||
| INPUT POWER | 7.08W | 6.72W | ||||
| MATERIAL | PA66 / PBT | |||||
| RATED VOLTAGE | DC 12V (FAN) & 5V (LED) | |||||
| BEARING TYPE | Fluid Dynamic Bearing (FDB) | |||||
| OPERATE VOLTAGE | DC12V & 5V | |||||
| WARRANTY | 3 years | |||||
