Details

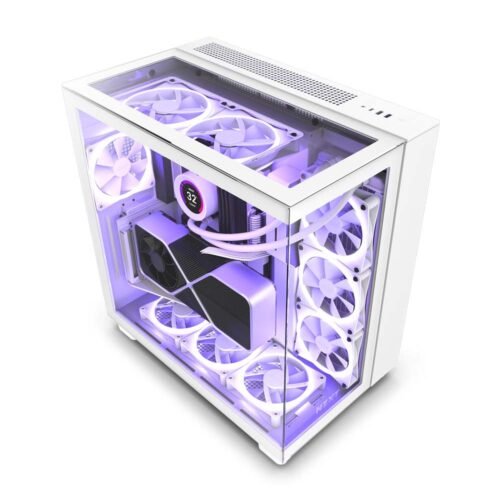

The H9 Elite is designed to show off every angle of your build with a tempered glass top panel and a built-in RGB & Fan Controller. The unique wraparound glass design with a dual-chamber layout is the perfect showcase for premium components.
- Unique uninterrupted glass panel for a clear view of the interior
- Intuitive cable management and dual chamber design
- Room for ten fans or three 360mm Radiators
- Tempered glass top panel and included RGB & Fan Controller
- Direct airflow to the GPU for handling high-powered components
- Enhanced experience with other products from the NZXT ecosystem
- Includes three F Series 120mm RGB Duo Fans and one F120Q Fan
Inside the Box
-
H9 Elite Case1
-
Front I/O split cables1
-
120mm RGB Duo Fan3
-
120mm Quiet Airflow Fan (Case Version)1
-
RGB and Fan Controller1
-
Installation Accessories1
-
Manual1
More Videos
Now Playing
GPU Capacity
The H9 Elite has 435mm of GPU clearance, offering room for the latest NVIDIA 40 Series and AMD 7000 Series cards.
Fan Capacity
The H9 Elite has room for 10 fans. With the capacity for 3x120mm fans on the side, 3 x 120mm or 2x140mm on the top and bottom, and 1 x120mm on the rear.
Radiator Capacity
The H9 Elite has room for up to a 360mm radiator on the top, bottom, or side, and up to a 120mm radiator on the rear.
KEY SPECS
- Motherboard Support:Mini-ITX, Micro-ATX, ATX
- Enclosure Type:Mid-Tower
- Case Material:SGCC Steel, TUltra-clear Tempered Glass, Dark Tinted Tempered Glass (Black only)
DIMENSIONS
- Height:495mm (With Feet)
- Width:290mm
- Depth:466mm
- Weight:13.1 kg
COMPATIBILITY & CLEARANCE
- CPU Cooler Clearance:Up to 165mm
- GPU Clearance:Up to 435mm
- PSU Clearance:200mm
- Cable Management:91mm
FRONT I/O PORTS
- USB 3.2 Gen 1 Type-A:2
- USB 3.2 Gen 2 Type-C:1
- Headset Audio Jack:1
EXPANSION SLOTS
- Standard:7
- Vertical:0
DRIVE BAYS
- 2.5″:4+2
- 3.5″:2
FAN SUPPORT
- Side:3 x 120mm
- Top:3 x 120mm / 2 x 140mm
- Bottom:3 x 120mm / 2 x 140mm
- Rear:1 x 120mm
- Filters:All Air Intakes
RADIATOR SUPPORT
- Side:Up to 360mm
- Top:Up to 360mm
- Bottom:Up to 360mm
- Rear:Up to 120mm
FAN SPECS
- Model:F120Q (Case Version)
- Speed:1200 ± 240RPM
- Airflow:62.18 CFM
- Static:1.05 mm – H2O
- Noise:25.1 dBA
- Fan Connector:3-pin
FAN SPECS
- Model:F120RGB Duo
- Speed:500 ± 1800RPM
- Airflow:48.58 CFM
- Static:2.42mm – H2O
- Noise:29 dBA
- Fan Connector:4-pin
GENERAL
- Warranty:2 Years
- Model Number:CM-H91EW-01 (White) / CM-H91EB-01 (Black)
- UPC:810074842525 (White) / 810074842518 (Black)
- EAN:5056547202440 (White) / 5056547202433 (Black)
