Palit RTX 5070 12GB GDDR7 Infinity 3

A New Era of SFF Power: The Infinity 3 Series
SFF builds are gaining popularity for good reasons. They save space, reduce clutter, and offer more portability. The Palit GeForce RTX™ 5070 Infinity 3 Series is designed with this goal in mind – to deliver the power of a high-end GPU within a form factor that fits into compact PC cases.

Specifications

Memory Amount	12 GB
Memory Interface	192 bits
DRAM Type	GDDR7
Graphics Clock	2325 MHz
Boost Clock	2512 MHz
Memory Clock	28 Gbps
CUDA Cores	6144
Memory Bandwidth (GB/sec)	672
Microsoft DirectX	Microsoft DirectX® 12 Ultimate
OpenGL	4.6
Bus Support	PCI-E 5.0
HDMI	HDMI 2.1b
DisplayPort	DP2.1b x 3
Maximum Digital Resolution	4K at 480Hz or 8K at 120Hz with DSC
Height	2 Slot

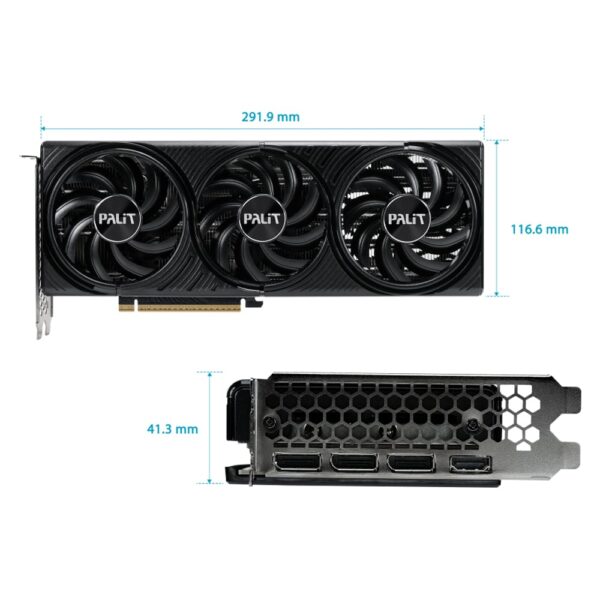

Board Size	291.9 x 116.6 x 41.3 mm
Graphics Card Power	250 W
Recommended System Power	650 W
Supplementary Power Connectors	16-pin x1
Accessory	Power Cable

Composite Heat Pipe
Copper Base
DrMOS
0-dB TECH
NVIDIA Architecture	Blackwell
Ray Tracing Cores	4th Generation
Tensor Cores	5th Generation
NVIDIA DLSS 4
NVIDIA Reflex 2
NVIDIA Broadcast
Resizable BAR
NVIDIA App
NVIDIA Ansel
NVIDIA FreeStyle
NVIDIA ShadowPlay
NVIDIA® Highlights
NVIDIA G-SYNC
Game Ready Drivers
NVIDIA Studio Drivers
NVIDIA Omniverse
RTX Remix
NVIDIA GPU Boost
Vulkan 1.4, OpenGL 4.6
NVIDIA Encoder (NVENC)	1x 9th Generation
NVIDIA Decoder (NVDEC)	1 x 6th Generation
AV1 Encode
AV1 Decode
CUDA Capability	12.8
VR Ready
SFF-Ready Enthusiast GeForce Card
Multi Monitor	4
